Various Specifications of Titanium Alloy Rod Welding Wire Ti2 Titanium Welding MIG Wire Roll

Product Description

Product Description

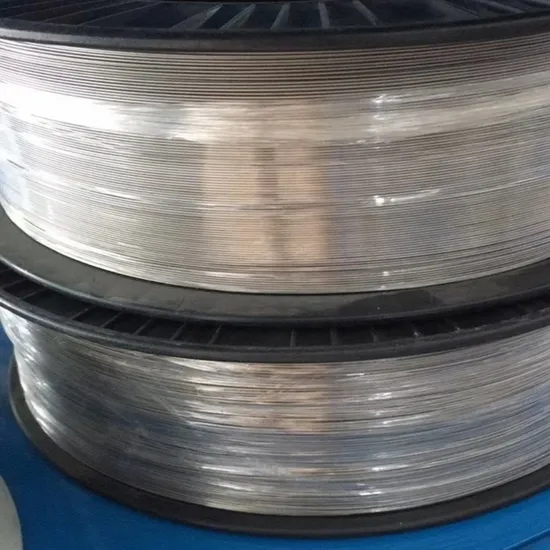

Titanium Wire Description: Titanium wires are made through multiple drawing processes, we have a variety of titanium and titanium alloy titanium wires, including 0.20-0.28 titanium wires for surgical staplers, 0.8-4.0 straight wires for orthopedics and dentistry, industrial titanium welding wires and other series of wires. Titanium Wire Specifications

Grade	Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr9(Ti-3Al-2.5V),Gr23(Ti-6Al-4V ELI),etc
Standard	ASTM F67;ASTM F136; ISO5832-2;ISO5832-3;AMS4928;AMS4963;AMS4965;AMS4967;ASTM B348; ASTM B863
Diameter(mm)	0.1~4.75mm
Shape	Straight, Coils, Spools
Condition	Annealed (M), Cold rolled(Y), Hot rolled(R)
Surface	Bright Surface

Titanium Wire Features: High Surface Finish
Good Roundness
Small Tolerances
High Dimensional Consistency
Stable Performance
Uniform Composition
Fine Grain Organization
Excellent Overall Performance
Long Fatigue Life Applications of Titanium Wires1. Medical: Used in surgical implants like bone screws, dental wires, and cardiovascular stents due to its biocompatibility and resistance to bodily fluids.
2. Aerospace: Essential for aircraft components such as fasteners, springs, and electrical connectors due to its high strength-to-weight ratio and resistance to corrosion.
3. Chemical Processing: Employed equipment for handling corrosive chemicals and acids, such as valves, fittings, and mesh screens, due to their corrosion resistance.
4. Electronics: Utilized in electronic devices for wire bonding, connectors, and antennas due to its conductivity and resistance to corrosion.
5. Jewelry: Found in high-end jewelry for its hypoallergenic properties, durability, and ability to be colored through anodizing.
6. Art and Design: Used by artists and designers for sculptural works and architectural installations due to its malleability and aesthetic appeal.
7. Automotive: Employed in automotive applications such as exhaust systems, springs, and suspension components for their lightweight and high strength.
8. Sports and Recreation: Utilized in sports equipment such as bicycle frames, fishing rods, and golf club shafts for its lightweight and durable properties.Chemical Composition
ASTM B863 Chemical Requirements:

Grade	UNS NO.	Composition, %
		Carbon, max	Oxygen, max	Nitrogen, max	Hydrogen, B, C max	Iron, max	Aluminum	Vanadium	Palladium	Ruthenium	Nickel	Molybdenum	Chromium	Cobalt	Zirconium	Niobium	Tin	Silicon	Other Elements,,max.each	Other Elements,max total	Titanium G
1	UNS R50250	0.08	0.18	0.03	0.015	0.20	...	...	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
2	UNS R50400	0.08	0.25	0.03	0.015	0.30	...	...	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
3	UNS R50550	0.08	0.35	0.05	0.015	0.30	...	...	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
4	UNS R50700	0.08	0.40	0.05	0.015	0.50	...	...	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
5	UNS R56400	0.08	0.20	0.05	0.015	0.40	5.5-6.75	3.5-4.5	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
9	UNS R56320	0.08	0.15	0.03	0.015	0.25	2.5-3.5	2.0-3.0	...	...	...	...	...	...	...	...		...	0.1	0.4	balance
23	UNS R56407	0.08	0.13	0.03	0.0125	0.25	5.5-6.5	3.5-4.5	...	...	...	...	...	...	...	...			0.1	0.4	balance

Analysis Tolerances
ASTM B863 Analysis Tolerances:

Element	Product Analysis Limits, max or Range, %	Permissible Variation in Product Analysis
Aluminum	0.5 to 2.5	±0.20
Aluminum	2.5 to 6.75	±0.40
Carbon	0.10	+0.02
Chromium	0.1 to 0.2	±0.02
Chromium	5.5 to 6.5	±0.30
Hydrogen	0.02	+0.002
Iron	0.80	+0.15
Iron	1.2 to 1.8	±0.20
Molybdenum	0.2 to 0.4	±0.03
Molybdenum	0.6 to 1.2	±0.15
Molybdenum	1.5 to 4.5	±0.20
Molybdenum	14.0 to 16.0	±0.50
Nickel	0.3 to 0.9	±0.05
Niobium	2.2 to 3.2	±0.15
Niobium	>30	±0.50
Nitrogen	0.05	+0.02
Oxygen	0.30	+0.03
Oxygen	0.31 to 0.40	±0.04
Palladium	0.01 to 0.02	±0.002
Palladium	0.04 to 0.08	±0.005
Palladium	0.12 to 0.25	±0.02
Ruthenium	0.02 to 0.04	±0.005
Ruthenium	0.04 to 0.06	±0.005
Ruthenium	0.08 to 0.14	±0.01
Silicon	0.06 to 0.50	±0.02
Tin	0.6 to 3.0	±0.15
Vanadium	0.6 to 4.5	±0.15
Vanadium	7.5 to 8.5	±0.40
Zirconium	0.6 to 1.4	±0.15
Zirconium	3.5 to 4.5	±0.20
Residuals(each)	0.15	+0.02

Mechanical Properties
ASTM B863 Tensile Requirements:

Grade	Tensile Strength, min		Yield Strength (0.2 % Offset) min or range		Elongation in 4D, min, %	Reduction of Area, min %
	KSI	MPa	KSI	MPa
1	35	240	20	138	20	24
2	50	345	40	275	18	20
3	65	450	55	380	18	18
4	80	550	70	483	15	15
5	130	895	120	828	10	10
9	90	620	70	483	15	15
23	115	793	110	759	10	10

Tolerances:
ASTM B863 Permissible Variations in Size for Titanium Wire

Specified Diameter, in. (dimension if shape wire)	Variations, in.
	Wire as Coil or on Spools	Cut Straight Lengths A
0.010 to 0.045, incl	±0.001	±0.0015
Over 0.045 to 0.062, incl	±0.0015	±0.002
Over 0.062 to 0.090, incl	±0.002	±0.0025
Over 0.090 to 0.187, incl	±0.003	±0.003
Over 0.187 to 0.250	±0.004	±0.004
Over 0.250 to 0.750	±0.005	±0.005
