High-Speed Pet Preform Injection Molding Systems (By CE)

Product Description

High-Speed Pet Preform Injection Molding Systems
ZQ 32, 48, 72, 96 cavities PET preform injection molding systems uses a new part cooling and handling system, which features:
1. Cooling on the inner surface of the preform without using compressed air, unlike most post-mold cooling systems which only cool the outer surface
2. Optimized cycle utilization - Being mounted on the moving platen, the cooling system remains active for up to 85% of the overall cycle.
PET preform injection molding systems are available from 280 to 500 tonnes (2800 to 5000 kN) and up to 96 cavities.
PET injection systems offer:
1. Faster cycles
2. Reduced energy consumption
3. Smaller footprint
4. Improved repeatability
5. Rapid set-up
High-Speed Pet Preform Injection Molding Systems
Machine Features:
1. Two state plasticizing enables plenty injection quantity;
2. Take out plate with three working position insures sufficient cooling time and shorter cycle time;
3. High quality parts and accessories from world famous brands enable higher speed and precision;
4. Special screw design increases torque while brings down shear force to avoid degradation;
5. Accumulator from world reputable manufacture increases performance while brings down power consumption;
High-Speed Pet Preform Injection Molding Systems (By CE),equipment information.

ITEM		UNIT	ZQ-PET32	ZQ-PET48A	ZQ-PET48B	ZQ-PET72A	ZQ-PET72B	ZQ-PET96
INJECTION UNIT	Screw L/D Ratio	L/D	25	25	25	25	25	25
	Screw Diameter	mm	85	100	120	120	140	140
	Injection Pressure	Kgf/cm 2	1080	875	875	875	875	907
	Output(Max)	Pcs/h	9600	17000	17000	23000	23000	30000
	Theory Shot Volume(Max)	cm	1700	2850	3800	3800	5400	5400
	Shot Weight(PS)	g	2040	3420	4560	4560	6500	6510
		ozs	72	121	161	161	230	230
CLAMPING UNIT	Clamping Force	T	280	360	360	500	500	600
	Clamping Stroke	mm	545	645	645	680	680	730
	Max/Min Thickness of Mould	mm	280~700	300~700	300~720	300~820	300~820	450~870
	Space Between Tie Bars (WxH)	mm	610~610	660~860	660~860	820~820	820~820	920~1220
	Ejector Stroke	mm	150	180	180	200	200	200
	Ejector Force	T	10	12	12	21	21	21
	NO.of Ejector Pins	PCS	5	5	5	13	13	13
	Max Pressure of System	Kg/cm 2	140	140	140	140	140	140
MOULD&ROBOT	Cavity(Max)	PCS	32	48	48	72	72	96
	Neck of Bottle(Max)	mm	42	42	42	42	42	42
	Length of Preform(Max)	mm	190	190	190	220	220	220
	Weight of Preform(Max)	g	45	35	50	35	50	35

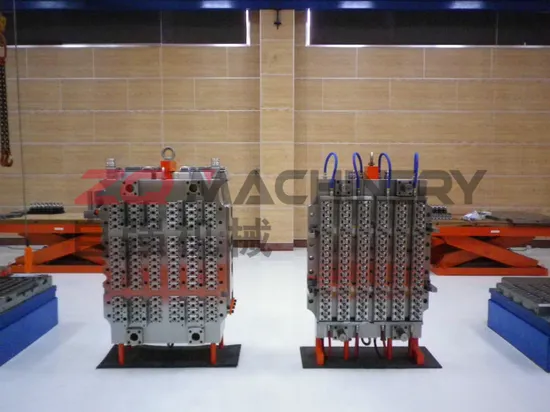

	Type of Mould	Needle Valve of No-Cutting PET Preform Molds
	Manipulator	Cavity	32x3	48x3	48x3	72x3	72x3	96x3
	Cooling Form	Cavity	96	144	144	216	216	288
POWER UNIT	Pump Motor Power	KW	45	45+75	45+75	55+90	55+90	75+110
	Robot Power	KW	10	25	25	25	25	42
	Mould Heater Capacity	KW	38	48	48	68	68	72
	Heater Input Capacity	KW	37	71	71	87	87	125
	Total Power	KW	130	264	264	325	325	424
OTHER	Electric Power Supply(3-phase AC)	V/HZ	380/50	380/50	380/50	380/50	380/50	380/50
	Chilling Water	ºC	5~15	5~15	5~15	5~15	5~15	5~15
		Mpa	0.6	0.6	0.6	0.6	0.6	0.6
		L/min	420	600	600	800	900	1200
	Coolling Water	ºC	30~55	30~55	30~55	30~55	30~55	30~55
		Mpa	0.25	0.25	0.25	0.25	0.25	0.25
		L/min	100	200	200	300	300	400
	Compressed Air	Mpa	0.7~0.9	0.7~0.9	0.7~0.9	0.7~0.9	0.7~0.9	0.7~0.9
		L/min	570	800	800	1200	1200	1500
	Machine Size (LxWxH)	mm	8820x3869 x2232	8455x3884 x2230	8455x3884 x2230	9765x4547 x2350	9765x4547 x2350	11060x4847 x2450

Note: The specifications are subject to change without notice for the further improvement.
