Kc310 Filament Yarn Tfo Twisting Machine Twister in High Tpm

Product Description

Product Description

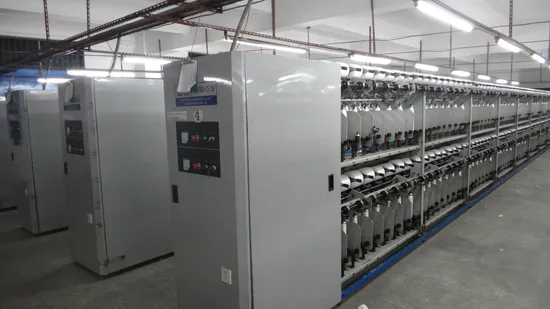

KC310 Yarn Twisting Machine Two For One Twister For Filament Fibers
It is applied to make twisting of filament yarns such as DTY, FDY, rayon yarns, pp yarns and other yarns in high TPM.
Features
A. The small-diameter spindle for yarn bobbins in cannonball type can obtain high-speed but stable twisting, and also obtain high production efficiency.
B. Double-layer design makes machine have double production capacity on just one machine.
C. To choose the servo motor yarn guide or the gear box mechanical linkage yarn guide, according to different customers' production conditions or requirements.

Product Parameters
KC310: make twisting of filament yarns in high TPM;

Number of spindles	256 (32spindles per section)
Twist direction	S or Z
Twist range	350-3989T/M (need to be selected)
Power motor	7.5KW*2
Overall size	16410*750*1895mm

Spindle gauge: 225mm;
Normal spindle quantity: 8000~14000rpm (according to different yarns)
Max. spindle quantity: 15000rpm;
Form of spindle driving: belt circulating drive;
Take-up tension: adjust the yarn in roller angle;
Spindle fixture: magnetic fixture;
Tensioner: ball tension device;
Size of yarn winding bobbin: L240~320*φ42*φ110
Size of winding bobbin: φ160*φ89*L165*L173
After Sales Service
For demo machine set:
32 spindles/section+Machine head;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
