Automatic Feeding Roller Rubber Extruder Machine for Superior Rubber Shaping and Extrusion

Product Description

Automatic Feeding Roller Rubber Extruder Machine for Superior Rubber Shaping and Extrusion Supply Range 1. Cold Feed Rubber Extruder
We offer extruders with a variety of diameters: 55mm, 60mm, 75mm, 90mm, 120mm, and 150mm, ideal for tubes, profiles, and tyres.
Our machines are perfect for producing treads, blanks, slugs, fuel tubes, fenders, rubber liners, and other technical extrusions with superior quality.
Application
Featuring a spiral channel with a fuselage system, our extruders ensure excellent thermal conductivity.
The screw and bushing are crafted from nitrided steel, offering exceptional strength and wear resistance for prolonged use.
Our screw structure incorporates a main thread design, promoting excellent plasticization and self-cleaning capabilities.
Equipped with a temperature control unit, regulated by a hot water circulating device for precise heat management.
Includes an advanced AC variable frequency or DC motor for optimized performance.

Model	XJ-90	XJ-120	XJ-150
screw diameter	90mm	120mm	150mm
screw speed	55 r/min	50 r/min	43 r/min
motor	55 kw	110 kw	185-220 kw

2. Pin Barrel Cold Feed Rubber Extruder The pin barrel features a sectional structure, with a feeding belt over the spiral grooved barrel, enhancing feeding capacity.
Designed for superior plasticizing and extrusion, the barrel contains various pin configurations to meet different processing needs.
ApplicationOur pin-type cold feed extruder utilizes cutting-edge manufacturing technology, ensuring top-notch quality and performance.
The pin barrel's sectional structure significantly boosts plasticizing efficiency.
The screw is precision-milled using CNC technology, polished to high accuracy, and treated with nitriding for durability.
This extruder offers strong extrusion capability, generates lower temperatures, and provides stable production processes.

model	XJ-120	XJ-150	XJ-200
Screw diameter	120mm	150mm	200mm
screw speed	50 r/min	43r/min	40 r/min
motor	110 kw	185-220 kw	315 kw

3. Hot Feed Rubber Extruder Our hot feed rubber extruder is extensively used for rubber hose, tubes, rubber sheets, inner liners, seals, and various other rubber products.
It is also ideal for shaping and supplying rubber to calenders, facilitating efficient production.

Model	XJ-65	XJ-85	XJ-115
screw diameter	65	85	115
L/D ratio	4:1	4.8:1	4.8:1
rotated speed	20-50	20-60	20-60

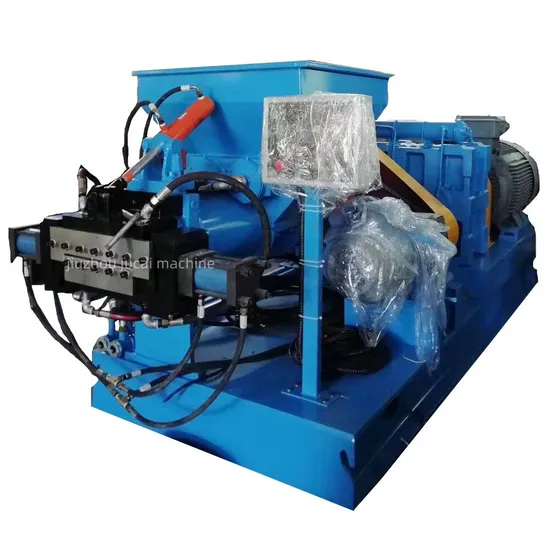

Machine Display
Company Profile
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
