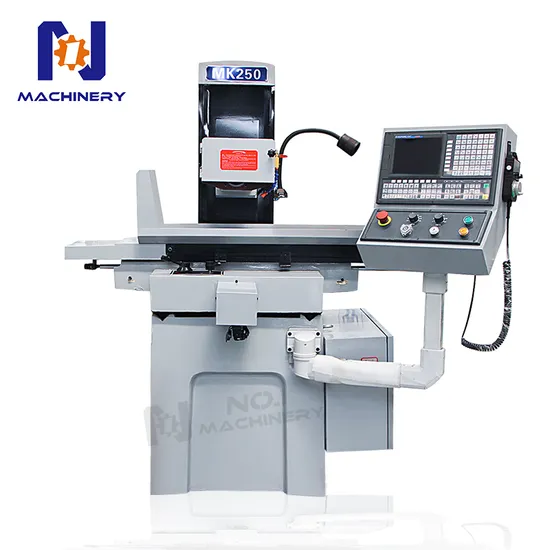

High Quality CNC Surface Grinding Machine Mk250 CNC Tool Grinding Machine

Product Description

Product Description

The machine tool applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.It can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters

Specifications				Units	MK250
workbench	Worktable size (L * W)			mm	250×500
	Max. travel of table (L * W)			mm	550×280
	Table T slot (slot number x slot width)			mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	Φ200×20×Φ31.75
	Distance spindle center line to working table			mm	500
	Grinding wheel speed		50HZ	r/min	3000
			60HZ	r/min	3500
The amount of feed	The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	2
			Handwheel per lattice	mm	0.01
	Transverse (front and rear) feed handwheel feed		Handwheel per turn	mm	4
			Handwheel per lattice	mm	0.02
Motor power		Spindle motor		kw	2
		Cooling motor		W	200
Machine weight		Net weight		kg	900
		Gross weight		kg	1000
External size (L * w * h)				mm	2400x1500x1800

Detailed Photos
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
