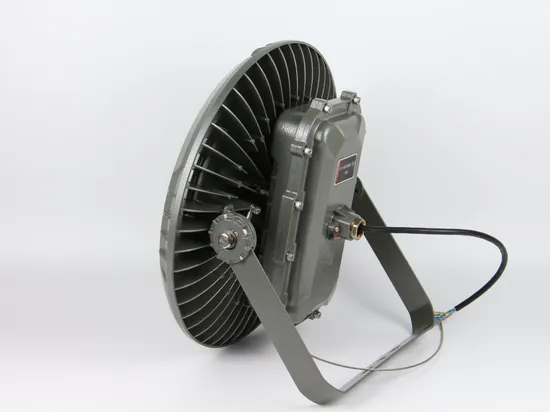

High Quality Hanging Explosion Proof Lamp Pendant Mounted Ex-Safe Light

Product Description

What is an explosion proof high bay or low bay light?
An explosion proof high bay or low bay light is an industrial-grade light fixture designed for use in hazardous locations where atmospheres may be exposed to the release of flammable gases or vapors, combustible dusts or ignitable fibers or flyings in explosive concentrations.
Typical hazardous environments form in high bay and low bay facilities such as oil and gas processing facilities, petroleum refineries, chemical plants, solvent tion and fireworks manufacturing and storage facilities, flour silos, grain processing and storage terminals, coal prepaextraction plants, powdering and lacquering facilities, saw mills and wood-processing facilities, pulp and paper mills, ammuniration and processing plants, aircraft hangers and fuel servicing areas, pulverized sugar and cocoa packaging and handling plants, and confectionary manufacturing plants.
BRIGHT & ENERGY EFFICIENT
This led Explosion-proof flood lights with 192Pcs Bridgelux led up to super efficiency 140lm/w, bring 28000 lumen, great replacement for 600W traditional HPS lamp. saving over 85% on your electricity bill
EXPLOSION & WATER PROOF
Explosion-proof Outdoor Gas Station light, IP65 weatherproof rating, which can ensure the light work properly no matter rain, snow, heat or cold environment, 100-277vAC, 5000k daylight 120 degrees
DURABLE & LONG-LASTING
Our 200w flood lights are made of heavy duty die cast aluminum housing and tempered lenses,ETL DLC Approved. The innovative heat dissipation can prolong LED lifespan to 50,000 hours. This is approximately 15 years of illumination(10 hours per day)
EASY INSTALLATION & Wide Applications
the outdoor led flood lights can be mounted on the walls, the ceilings or to the ground. perfect for LED Lanscape gas station, petroleum and chemical industries coal mine, airport, warehouse, marine etc
Key FeaturesElectrical configuration
The light source adopts the first-line brand CREE LED light-emitting chip, with ultra-high light efficiency and an average service life of up to 100,000 hours.
Heat dissipation performance
The light source radiator is made of one-piece die-casting molding, the structure is firm, and has excellent thermal conductivity and heat dissipation performance. lamp life.
Optical lampshade
Made of high-strength optical-grade materials, corrosion-resistant and impact-resistant, light transmittance can reach 95%~98%, light irradiation is uniform and soft, and anti-glare design.
Ultra-high anti-corrosion:
The surface of the lamp body radiator is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel.
With high-precision processing technology, it has the characteristics of high anti-corrosion, high anti-rust, high water resistance, etc.
It is especially suitable for all kinds of strong acid, Work in harsh environments with strong alkali and high protection requirements.
1, The preferred products of industrial lighting solutions are applied to factories, workshops, warehouses, stations, squares, airports, and gas station lights.
2, Using the imported material lens to match the light,60 degrees, 90 degrees, 120 degrees are available and other luminous angles according to different locations.
3, High-quality die-casting aluminum alloy lamp body structure design has an excellent heat dissipation effect.
4, 3 Types power supply installation
5, The luminaire efficiency is greater than 130-140Lm/W.
6, Protection grade IP65
7, Different color inner Ring for customer choose: Red/Green/Yellow
8, Support silver 120degree silver reflector
Detailed Photos
Product Parameters

Rated power	50-100W	Power factor	>0.95
Rated voltage	AC 220V 50/60Hz	ambient temperature	-20~40ºC
Degree of protection	IP66	type of light source	led
Beam angle	120°	correlated color temperature	3000-6500K
Number of lamp beads	100pcs	Color rendering index	≥70RA
Lamp specification	CREE3030	Light source life	>100000h
Anti-corrosion grade	WF2	Explosion-proof grade	Exd IIC T6 Gb
light source light effect	120Lm/w	Executive standard	GB3836.1,GB3836.2
Product Size	φ253×185mm	product weight	4.8kg

Installation Instructions
Packaging logistics

Item		Describe			Quantity
Liner Size		8232 Tall Glass Foam Share			1
Outer carton size		28.6*26.6*26.7cm (common for 8231 short glass)			1
Packaging method		A box of one

Application scenariosApplication areas
Working in potentially explosive areas require explosion proof lighting solutions. We have taken advantage of these multiple technology developments to design a new range of explosion proof LED work lights providing powerful illumination, extreme durability, versatile functionality, and very long lifetime.
The explosion proof work lights are approved and certified according to the latest European ATEX directive.
Caution
-Schematic diagram
1.Before installation, it is necessary to check whether the actual operating conditions are in conformity with the parameters listed on the lamp nameplate.
2.Before installation, please test the lighting according to the parameters of the lamp nameplate to ensure that there is no quality problem before installation.
3.Before installation, it is necessary to determine the installation location and mode of the lamps according to the installation mode provided by the product, in combination with the on-site use environment and lighting requirements, so as to ensure that the installation is firm and reliable.
4.Connect the prepared cables with the input cables of lamps and lanterns according to the corresponding fire (brown), zero (blue) and ground (yellow-green) wires, so as to ensure that the connection is firm, and make good insulation and waterproof measures at the connection.
5.The input end of the cable can be connected to the power supply of the corresponding voltage to illuminate.
-Using The Matters Needing Attention
1. When transporting, the lamp should be installed in the carton equipped with foam shock absorption.
2. When using, the surface of the lamp has a certain temperature rise, which is a normal phenomenon.
3. The power supply voltage can work normally in the rated voltage. If the power supply voltage is too high, the lamp will be damaged; if the voltage is too low, the lamp will not start normally.
4. The luminaire must be reliably grounded.
-Quality Assurance
The company has passed ISO9001:2008 international quality system audit certification, this product strictly implements ISO9001 international quality management system standard production, to ensure that the product quality fully meets national standards and design requirements.
Explosion Proof Exit Light EX proof Emergency Light Explosion-Proof High Bay Light
FAQ1.Why is Explosion Proof Lighting necessary in your area?
Plenty of commercial facilities have areas where lighting fixtures can come into contact with hazardous materials. These can be flammable, combustible, or ignitable materials, gases, or vapors. These areas can be at risk of fire or even explosion if the lighting fixtures can't withstand the abnormal conditions.
2.What is hazardous location lighting?
Hazardous location lighting refers to fixtures that you can safely use in an area where it's likely that fire might start. According to the National Electrical Code, hazardous locations are those areas "where fire or explosion hazards may exist due to flammable gases or vapors, flammable liquids, combustible dust, or ignitable fibers or flyings."
3.What is explosion-proof light fixture?
Explosion proof lighting refers to lighting fixtures that are able to contain sparks that could potentially the flammable and explosive gases in the atmosphere. Therefore, explosion proof lighting does not refer to lighting equipment that are resistant to explosions but rather, the capacity to prevent external explosions from occurring in a hazardous location.
4.What environments require hazardous location lighting?Presence of Flammable Liquids and Gases
Wherever flammable gases and liquids are present, the location may be identified as a hazardous one because such compounds can cause an explosion or catch fire.
Gas and liquids have to achieve a critical concentration before it becomes dangerous. However, once they do, that's when a potential disaster can occur. Company ProfileAs a leading supplier of explosion proof lighting,Lamp suite is dedicated to helping you illuminate numerous settings with powerful and durable lighting systems. We've assisted a variety of businesses with projecting sufficient lighting across the work space or public area, including:
- Commercial scenes
- Government projects
- Mining sites
- Remote accommodation sites
- Warehouses & other industrial environments
Our explosion proof lighting is designed using technologically advanced methods with both economical and ecological results. Lighting is a crucial aspect of successful workflow and, therefore, your business' profit. Finding suitable lighting for the work site that won't falter under extreme circumstances is what makes it most reliable in any situation. Lamp suite explosion proof lighting is 100% certified with non-spark, durable, and thick materials, along with all necessary features to maintain a high level of safety at all times.
So, what makes Lamp suite different?
Our expertise in solar and technical lighting solutions allows us to give you the appropriate explosion proof lighting to suit you and your business's needs the best. As a result, you can expect outstanding LED performance, lower costs, increased productivity, and safety adherence to give you and your workers total peace of mind.
Lamp suite has a passionate team aiming to help you create a safe working or public environment where workers, pedestrians, shoppers, or anyone nearby can feel comfortable moving around.
