High Elongation Copper Foil at High Temperature (HTE Foil)

Product Description

Products Name:High Elongation Copper Foil at High Temperature(HTE Foil)
1, Index standard of product quality
2,The executing standard of product:IPC-4562
3,To ensure excellent guilty, please keep the original package as possible, store it below
25ºC, 60% relative humidity, and keep it away from corrosive gases, the duration of
Storage is 180 days.
4,High Elongation Copper Foil at High Temperature(HTE Foil)

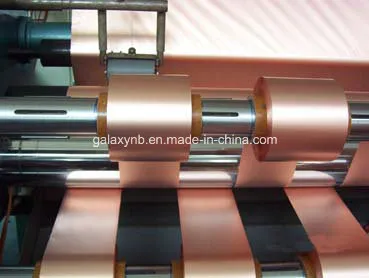

5,Production process
6,Test report:We can supply the test certificate
Inspection Report

Name	Electrolytic copper foil			Size		0.035mm*1100mm
Client name				Inspection date		2015-7-13
Inspection item		Standard			Inspection result
Appearance		IPC4562			Qualified
Basic weight		280±5g/			279.9 g/
Peel strength (kgf/cm)		≥1.6			1.84
23ºCTensil strength(Mpa)		≥300MPa			358 MPa
23ºCElogation		≥5%			11.2%
Surface Roughness Ra(μm)		≤0.43			0.26
Surface Roughness Rz(μm)		≤12.5			0.95
Oxidation Resistance (200ºC×30min)		Non-discoloring			Non-discoloring
Remarks:Meet the standards.
Principal:Mr shi			Inspector:3,5,6,8,9

7,SEM Photo
(8) Advantages of products
Competitive price with good quality.
Low MOQ
Customized size and spec
Convenient transportation
Short lead time (7-30days according to order qty).
(8)Delivery:Dependable
(Due to the difficulty of different kind of product, we try our best to provide you with the high quality products ASAP.)
(9)Inspection:To assure you of the high quality and our reputation, we have our products checked strictly.
(10)Package:
(11)Transportation:
EXPRESS, BY SEA OR BY AIR according to your requirement.
(12)After Sale Service:
Reply within 24hours, solution within48 hours.
