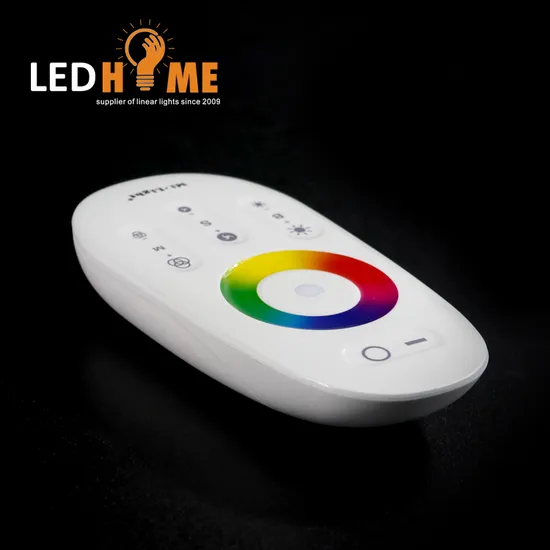

Good Quality LED Dimmer Remote Controller with 3 Zone Touch Remote

Product Description

1. Touch and ultra thin design.
2. Color ring with Brightness change, dynamic modes.
3. 1 remote control 3 zones receivers and lighting separately or together.
4. Control distance:20-30 meters.

Product Description
2.4G 3 Zone Touch Remote LED Dimmer can realize grading dimming. Adopting touch ring controlling. User can long-distance remote the light brightness to proper one according to actual demand. With 2.4 G remote control frequency, remote control effect is stable, strong anti-jamming. Having more zones controlling function, can realize one to more controlling.
Specifications

Item	Parameter
Supply Voltage	3V(1.5V CR2025*1 batteries)
Transmission frequency	2400-2483.5MHZ
Control mode	GFSK
Transmission power	6db
Static power consumption	10uA
Remote distance	20-30 meters
External dimension

Remote Function introduction:
1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote can control it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt touch control remote, slightly touch the color wheel can switch the light brightness smoothly

Operation method:
1,Connect the load wire at first, following by the power wire; Please make sure no short circuit between connecting wire before you turn on the power;
2,Only the ON button is effective in the OFF station, press the ON button for the first time then controller will enter to the latest mode before turn off the controller last time (memory off function).
3,Press ON button to start, then press mode button can switch the 2 dynamic modes as following:

Number	Mode	Adjustable state
1	Strobe	Brightness is not adjustable,"+""-"are for speed up and down
2	Fade in and fade out	"+""-"are for speed up and down

Match code and clean code Instruction:
For a new combination, the remote have to match code with the receiver then it can be used normally. Before match code, switch on the power to check if the LED Controller, power supply and led light are connected correctly.
Match code: Switch off the power, then Switch on again (within 5 seconds)long press the "Group X(X=1,2,3)"Button for 2 seconds. the output led light will be quickly flash for 3 times, this means the remote is matched code with this receiver successfully, they can be used normally.
For example: there are A and B controller. Firstly, Switch on the power for A(within 5 seconds)long press "Group 1"button for 2 seconds, the output led light will be quickly flash. "Group 1" can control A controller.

Secondly, Switch on power for B(within 5 seconds)long press "Group2"button for 2 seconds, the output led light will be quickly flash, "Group 2" can control B controller

When long press Master OFF button, Both A and B will be turned off, then short press Master ON button, Both A and B will be turned on, A and B can be controlled in the same time. Well,if A is turned on and B is turned off , short press Master ON button, the A will be turned off, B will be turned ON

If need control A independently, press GROUP 1 firstly, then the touch ring can control A only. Similarly, for Group 2 and Group 3.

Remark:a remote control can operate 3 groups of controllers at the same time. each group of controllers can be composed of many controllers, such as 30 controller divided the 3 groups, then, each group control can remote 10 controllers, to achieve synchronously adjustable brightness effect.
Clean code:
If need change the Group combination, the link between remote and receiver can be cleaned. Then rebuild the link as required.
Code clean method:
Switch on power for controller(within 5 seconds)long ress "GROUP X(X=1,2,3)"button for 2 seconds, the related led light will be quickly flash for 3 times, that means this group has been cleaned code.

Remark: our factory default for set package is Group 1 linked to controller. User can build link according actual demand. One remote can be linked with countless controller, one controller only can be linked with 2 remotes. ,
