Three-in-One Feeder High Utilization Automatic Bar with Uncoiling Machine

Product Description

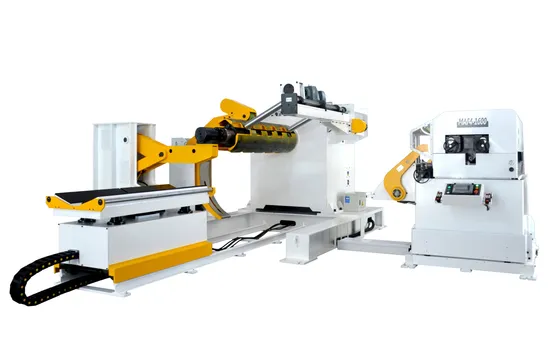

3 in 1 is a combined machine which combines decoiler, straightener and feeder together. It is specially designed for the producing of wide material and material with high yield strength.
The feeding rollers and straightening rollers of the equipment are specially treated with high hardness, wear resistance and long service life. The surface of the rollers is treated with hard chromium plating to increase the surface smoothness of the roller.
Some special materials are sandblasted to ensure the feeding accuracy will not be affected due to slipping during the feeding process; a new type of automatic oiling device (optional) is equipped at the output, and the oiling rollers are wool felt, which is conducive to the protection of the material surface and even mixing of the oil layer.
Adopt the Japanese servo motor to ensure high-precision feeding; the operation panel adopts the color LCD, large-scale touch screen, high-definition operation picture, cooperate with the operation safety protection system, even the green users can operate safely; the perfect operation system humanized design shortens the preparation work.
The advanced automatic diagnosis system helps the operator quickly control the performance of the machine; the design concept of enhancing the safety factor makes the safe service life of the equipment longer.
Product Parameters

item	unit	diameter	note
Material width	mm	30-300
Material thickness	mm	0.3-3.2
Material weight	Kg	2000
I.D. of coil	mm	Φ480-520
O.D. of coil	mm	Φ1200
Straightening rollers	umber	8rollers.up4/down4, Φ48MM
Feeding rollers	number	2rollers.up1/down1, Φ84MM
Feeding accuracy	mm	0-1000±0.2
Air source	Mpa	0.4-0.5
Servo motor	kw	AC2.9
Decoiler motor	kw	AC0.75
Feeding line	mm	Customer requirement 1200 ±100	to be filled by buyer
Range of I.D.	mm	Φ480-Φ520
Way of expansion		Hydraulic expansion
Feeding direction		Customer requirement	to be filled by buyer
Suitable material		cold-reduced sheet, hot rolled sheet, pickling sheet, stainless steel and cooper
Power source		AC380±10%,50HZ,three phases or customized as per local voltage	Notice the voltage
Machine color		white(body9010)moving part(yellow)

Configure the main parameters

item	name	brand	note
1	motor	Wanshsin
2	Servo motor	Yaskawa
3	Human-machine interface	MGCS/WEINVIEW
4	PLC	Mitsubishi
5	contactor	Schneiders
6	contactor	Schneiders
7	button	Schneiders
8	timer	Omron
9	Pneumatic components	Airtac
10	Hydraulic components	Chuanglibo
11	Photoelectric induction	Autonics
12	cylinder	Airtac
13	Straightening bearings	NSK
14	Frequency shifter	Delta/Mitsubishi
15	Servo motor driver	Yaskawa

Hunan Qinfeng Robot Corporation Limited is a leading manufacturer and provider of comprehensivestamping automation solutions, dedicated to enhancing manufacturing efficiency and precision. Ourextensive product lineincludes:
Stamping Manipulators and Robots: Advanced systems designed to automate and streamline stampingprocesses.
3-in-1 Decoiler-Straightener-Feeders: Integrated machines that combine decoiling, straightening, andfeedingfunctions to optimize material handling.*Destackers: Equipment engineered to separate and feed individual sheets from a stack, ensuring smoothoperation.
Transfer Manipulators: including 3D. independent. and one-bar transfer manipulators, these devicesfacilitate the precise movement of workpieces between stations.Tooling Solutions: Offering progressive dies and single molds tailored to meet diverse stampingrequirements.
Stamped Products: High-quality stamped components produced to exacting standards.Our commitment to innovation and quality ensures that our clients receive state-of-the-art equipment andservices,tailored to their specific needs.
Dedicated to stamping automation this small industry for 15 years, we are now leading the industry nowWith the philosophy of "honest operation, excellent quality, developing and innovation, mutual benefit andwin-win",we are yourideal partnerin stamping automation.The orderis not the end, but the beginning of the service.Q1: Who are you?
We are Hunan Qinfeng Robot Corporation Limited
Q2: Are you a factory or trading company?
We are a factory.
03: What service do you provide and what are your products?
We provide one-stop solution to stamping automation. Except punch press, wemake all equipment including stamping manipulators, stamping robots, 3 in 1decoiler straightener feeder, destacker,3D transfer manipulator,independenttransfer manipulator, one bar transfer manipulator, progressive die, singlemold and stamped products in our own factory.
Q4: Where is your factory located? How can l visit your factory?
We are located in Huarong, Yueyang, Hunan. You can take high speed train toYueyang station or fly to Yueyang airport. We can pick you up from Yueyangstation or airport. lt's about 1 hour by car from our factory to Yueyang stationor airport.
05:ls your machinery standard or customized?
Both. Most machinery are standard models. lf standard models can't meet yourpersonal needs,we can customize as per your personal needs.
06: How does your factory's quality system work?
QUALITY IS PRIORITY. We check all machines parts before installation and allmachines will be tested before shipment.
07: How long is the warranty of the machine?
The warranty is one year. With good maintenance, the machines can be used
more than 10 years.
Q8: Do you have after sales service?
Yes, we have some overseas service partners that can provide on-siteafter-sales service.In those countries we haven't had service team, we arehappy to provide support through mail, visual phone and etc.
09:ls it possible to be a foreign agent and distributor?
Yes. Welcome to be our agent or distributor if you have sales and after-salesservice team in the stampingindustry.
