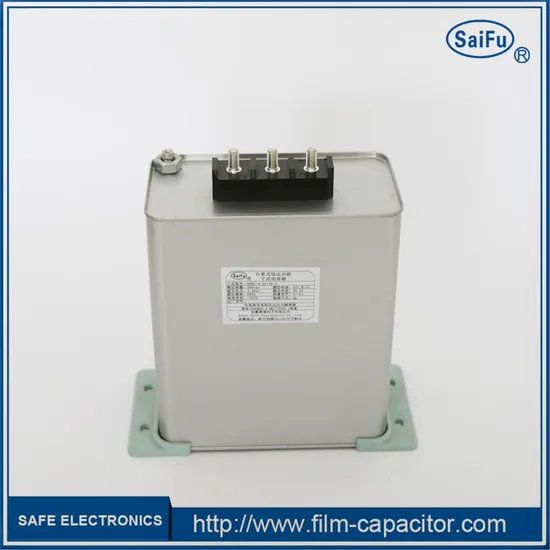

Low Voltage Shunt SH Film Capacitor For The Power Grid
Low voltage shunt capacitor is designed with special technology to provide inductive reactive
power for the system and absorb capacitive reactive power of the system.
1.Production Process Flow Chart
2. Features
(1)Small size, large current, adapt to higher ambient temperature degree, lower temperature
rise, less heat. (2)Excellent self-healing performance, bulit -in-self discharge resistance and safety explosion
-proof device makes the product more safe and more reliable. (3)Adopt dry structure, or use microcrystalline wax as an impregnant agent, running performance
is more steady, no oil leakage, safety and environmental protection. (4)The printed iron shell with special anti-corrosion treatment, corrosion resistance, attractive and
firm, no need to spray paint, more environmentally friendly.
3. Applications
Widely applied to the power factor capacitors of AC power system with nominal voltage of
1000V and below, frequency of 15Hz~60Hz, mainly used to improve the power factor, reduce
reactive power loss and improve voltage quality.
4. Technical Specification

Model BSMJ	Rated Volatge	Rated Capacity	Size L×W×H	Model BSMJ	Rated Volatge	Rated Capacity	Size L×W×H
	kv	kvar	mm		kv	kvar	mm
0.4-5-3	0.4	5	167×57×110	0.45-16-3	0.45	16	167×57×180
0.4-7.5-3	0.4	7.5	167×57×130	0.45-18-3	0.45	18	167×57×210
0.4-10-3	0.4	10	167×57×150	0.45-20-3	0.45	20	167×57×210
0.4-12-3	0.4	12	167×57×180	0.45-25-3	0.45	25	167×95×210
0.4-14-3	0.4	14	167×57×210	0.45-30-3	0.45	30	167×95×210
0.4-15-3	0.4	15	167×57×210	0.525-5-3	0.525	5	167×57×130
0.4-16-3	0.4	16	167×57×210	0.525-7.5-3	0.525	7.5	167×57×150
0.4-18-3	0.4	18	167×85×190	0.525-10-3	0.525	10	167×57×180
0.4-20-3	0.4	30	167×85×190	0.525-12-3	0.525	12	167×57×210
0.4-25-3	0.4	25	167×85×210	0.525-14-3	0.525	14	167×57×240
0.4-30-3	0.4	30	167×85×250	0.525-15-3	0.525	15	167×57×240
0.45-5-3	0.45	5	167×57×110	0.525-16-3	0.525	16	167×85×210
0.45-7.5-3	0.45	7.5	167×57×110	0.525-18-3	0.525	18	167×85×210
0.45-10-3	0.45	10	167×57×130	0.525-20-3	0.525	20	167×85×210
0.45-12-3	0.45	12	167×57×150	0.525-25-3	0.525	25	167×85×245
0.45-14-3	0.45	14	167×57×150	0.525-30-3	0.525	30	167×85×300
0.45-15-3	0.45	15	167×57×180

Model BSMJ	Rated Volatge	Rated Capacity	Size L×W×H	Model BSMJ	Rated Volatge	Rated Capacity	Size L×W×H
	kv	kvar	mm		kv	kvar	mm
0.4-5-3	0.4	5	Φ76×245	0.45-16-3	0.45	16	Φ86×245
0.4-7.5-3	0.4	7.5	Φ76×245	0.45-18-3	0.45	18	Φ86×290
0.4-10-3	0.4	10	Φ76×245	0.45-20-3	0.45	20	Φ86×290
0.4-12-3	0.4	12	Φ76×245	0.45-25-3	0.45	25	Φ116×290
0.4-14-3	0.4	14	Φ86×245	0.45-30-3	0.45	30	Φ116×290
0.4-15-3	0.4	15	Φ86×245	0.525-5-3	0.525	5	Φ76×245
0.4-16-3	0.4	16	Φ86×245	0.525-7.5-3	0.525	7.5	Φ76×245
0.4-18-3	0.4	18	Φ86×290	0.525-10-3	0.525	10	Φ76×245
0.4-20-3	0.4	30	Φ86×290	0.525-12-3	0.525	12	Φ76×245
0.4-25-3	0.4	25	Φ116×290	0.525-14-3	0.525	14	Φ86×245
0.4-30-3	0.4	30	Φ116×290	0.525-15-3	0.525	15	Φ86×245
0.45-5-3	0.45	5	Φ76×245	0.525-16-3	0.525	16	Φ86×290
0.45-7.5-3	0.45	7.5	Φ76×245	0.525-18-3	0.525	18	Φ86×290
0.45-10-3	0.45	10	Φ76×245	0.525-20-3	0.525	20	Φ86×290
0.45-12-3	0.45	12	Φ76×245	0.525-25-3	0.525	25	Φ116×290
0.45-14-3	0.45	14	Φ86×245	0.525-30-3	0.525	30	Φ116×290
0.45-15-3	0.45	15	Φ86×245

5. Production Equipments
6. Product Certifications
7. R & D Patents
8. Honors Our Company Has Received
9. Geographical Advantage
Thirteen minutes to reach "G50 ShangHai-ChongQing Expressway"
10. FAQ
Q1. Are you a manufacturer? Yes, we are professional capacitor manufacturer and have specialized in this industry for decades. Q2. What is the specification of DC-Link capacitor? Capacity: 5kvar-100kvar Voltage: 0.4kv-1.2kv Q3. How do you ensure your quality? Our products have obtained CQC, TUV, UL, CE and other relevant certifications, in compliance with
RoHS and REACH directive requirements. Q4. Can you provide samples? Yes, we can provide samples for testing. Q5. Can your product be customized? Yes, we can customize products according to customer's requirement.
