plastic dirty waste recycling Plastic/LDPE/PE/PP/HDPE/LLDPE/BOPP/Film/Foil/Woven/Bags/Raffia recycling washing line machine

Product Description

Product Description

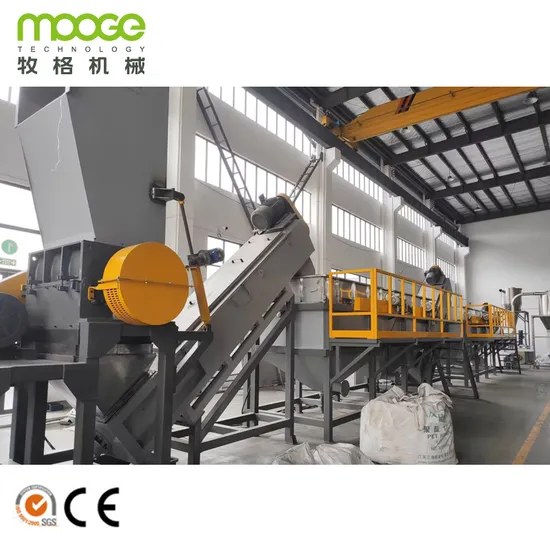

This plastic dirty waste recycling film washing machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, washing, drying, and collecting process will turn to be clean flakes for pelletizing.
We can also customize the washing line according to buyer's material and product requirement.
Product Parameters
We have the capacity from 300kg/h to 1000 kg/h of ME-Series plastic dirty waste recycling film washing machine for your choice. We can also design the layout according to your factory's actual situation in "L" or "U" type.

Model	Capacity	Installed Power	Water Supply	Manpower	Area Required
ME-300	300 kg/hr	200 KW	6-8 m3/hr	2-3 Person	40*4*5m
ME-500	500 kg/hr	350 KW	8-10 m3/hr	4-6 Person	40*4*5m
ME-1000	1000 kg/hr	600 KW	15-20 m3/hr	8-10 Person	55*6*6m

Working Flow
Working Flow (500kg/h for example)
--- Belt conveyor: feeding the plastic film/bags into the crusher. If there is any scrap metal inside the material, semi-auto metal detector is suggested. --- T-series crusher: with water, crush plastic film/bags into small size (size is adjusted as buyer request)--- Friction washing loader machine: friction washing the material and loading out the material--- Floating washing tank: washing out the sand, soil and dirty from the material--- Screw loader: loading the material to the next step--- Horizontal friction washing dewatering machine: with high rotary speed washing out dirty and remove dirty water--- Floating washer tank: washing out the dirty from the material--- Friction washing loader machine: friction washing the material and loading out the material--- Dewatering machine: remove the water from the material--- Hot air drying system: drying the material--- Storage hopper: collect the material--- Control cabinet: control the line on/off (famous brand such as Schneider, Siemens, etc.) Detailed Photos
Plastic crusher machine
Function: crushing the pe pp film/bags into small pieces
With water inlet do wet crushing
The rotary and fixed blades inside the crusher made by SKD-II or D2 are more wider, which will save the blades cost
Use the big roller bearing ensure durable use
Bearing house is installed outside of the crusher chamber so no dirty goes inside
Friction washing loader
Function: Friction washing the plastic film/bags scraps with water and loading up it
Up and down both mounted with bearing design ensure the low maintenance and long use life
With water injection system to cleaning the screen
Bottom with water drain system The machine part contact with water made by SUS304
Floating washing tank
Function: Floating washing separate the sand, soil and other dirty The roller is specially made can have more washing for pe pp scraps but less water take out
Tank bottom with double conical design to leave the dirty down in it, when change water drain out all the dirty with water
The machine part contact with water made by SUS304
Horizontal dewatering machine
Function: take out dirty and remover water With high raotary speed reach up to 1500rpm
With the roller bearing and fixed outside of the rotor for long use life
Inside with mesh layer, mesh made by SUS304 with the diameter 2.5mm
With water spray system to clean the mesh
Hot air drying systemFunction: futher drying the material with hot airHeating by electricity, with one set of heating box
With one set of blower fan to transmit the flakes through the pipeThe pipe is made by 304 stainless steelThe pipe with bigger and more thickness elbow for longer use
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
MOOGE TECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better, and we are looking forward to cooperating with you for a bright future.
In order to match your requirement and provide you a proper quotation, please Let us know:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want? we have 300kg/h, 500kg/h, 1000kg/h or larger capacity....
• What is the final size(mm) of flakes you want?
• Other special requirements about the plastic dirty waste recycling film washing machine you want?
