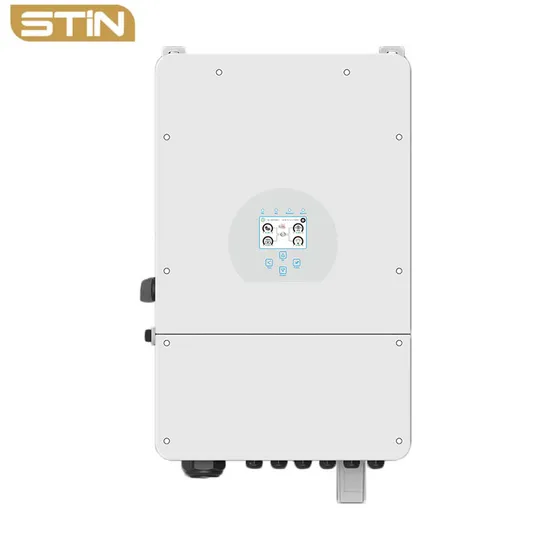

6kw 8kw 10kw 12kw on/off Grid Three Phase Hybrid Solar Inverter for Solar Photovoltaic Power Energy Storage Lithium Battery Solar System

Product Description

on/off Grid Three Phase Hybrid Solar Inverter 6kw 8kw 10kw 12kw for Solar Photovoltaic Power Energy Storage Lithium Battery Solar System Product Description Feature:
- Supports Single Phase 220Vac/230Vac/240vac Solar System.
- Self-consumption and feed-in to the grid. - Auto restart while AC is recovering. - Programmable supply priority for battery or grid. - Programmable multiple operate on modes: On grid, off grid and UPS. - Configurable battery charging current/voltage based on applications by LCD setting. - Configurable AC/Solar/Generator Charger priority by LCD setting. - Compatible with mains voltage or generator power. - Overload/over temperature/short circuit protection. - Smart battery charger design for optimized battery performance. - With limit function, prevent excess power overflow to the grid. - Supporting WIFI monitoring and build-in 2 strings of MPP trackers. - Smart settable three stages MPPT charging for optimized battery performance. - Time of use function. - Smart Load Function.

Model	SUN-6K-SGO4LP3 -EU/AU	SUN-8K-SGO4LP3 -EU/AU		SUN-10K-SGO4LP3 -EU/AU	SUN-12K-SGO4LP3 -EU/AU
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range (V)	40~60
Max. Charging Current(A)	150	190		210	240
Max.Discharging Current (A)	150	190		210	240
Charging Curve	3 Stages /Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power(W)	7800	10400		13000	15600
PV Input Voltage(V	550(150~800)
MPPTRange (V	200-650
Start-up Voltage (V)	160
PV Input Current(A)	13+13	13+13		26+13	26+13
Max.PVISC(A)	17+17	17+17		34+17	34+17
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	1+1		2+1	2+1
AC Output Data
Rated AC Output and UPS Power(W)	6000	8000		10000	12000
Max.AC Output Power(W)	6600	8800		11000	13200
Peak Power (off grid)	2 times of rated power,10 S
AC Output Rated Current(A)	9	12		15	18
Max.AC Current (A)	13.5	18		23	27
Max. Continuous AC Passthrough (A)	50
Output Frequency and Voltage	50/60Hz;230/400Vac(Three phase)
Grid Type	Three Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max. Effciency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output OverVoltage Protection	Integrated
Surge protection	DC Typell/ ACType II
Certifications and Standards
Grid Regulation	IEC61727,IEC62116,IEC60068,IEC61683,NRS 097-2-1
Safety EMC/Standard	IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11,IEC61000-3-12
General Data
Operating Temperature Range(ºC)	-25~60ºC,>45ºC Derating
Cooling	Smart cooling
Noise(dB)	<45 dB
Communication with BMS	RS485;CAN
Weight(kg)	34.5
Size (mm)	422W×658H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years
