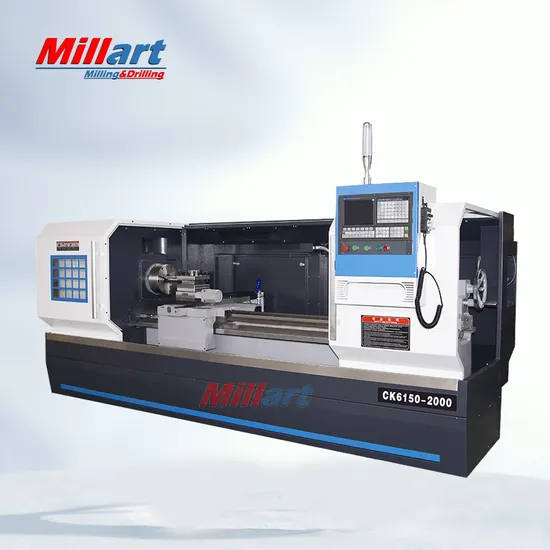

Ck6163 CNC Horizontal CNC Lathe Machine for Metal, CNC Lathe Machine

Product Description

Product description:
1.It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.frequency conversion stepless speed regulation

Technical parameter :
Specification

Specification		Units	CK6163
Max.length of work-piece		mm	1000
Max. turning length		mm	850
Max dia.swing over bed		mm	Φ630
Max dia.swing over cross slide		mm	Φ350
Width of bed		mm	550
Standard chuck (manual)		mm	Φ320
Spindle bore		mm	105
Spindle nose		mm	C11
Spindle taper hole		mm	1:20/15
Power of spindle motor		kw	11
Mode of spindle speed			Three gears , smooth adjustment
Range of spindle speed		R/min	L:14-175,M:40-500,H:100-1000
X/Z rapid traverse		Mm/min	4000/8000
Min. Feeding set unit of X/Zaxis		mm	0.001
X-axis motor	speed	r/min	1500
	torgue	N.m	10
	power	kw	1.5
Z-axis motor	speed	r/min	1500
	torgue	N.m	15
	power	kw	3.5
Tailstock quill		mm	100
		mm	250
			Morse NO6
Electric tool-post	model		HAK-21240
	No.of tool stations		Vertical four-station
	Dimension	mm	240*240
	Turretindexing time	S	4.1
Chuck			Φ320 three jaw chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	3100*2100*2000
Machine weight		T	4

Standard accessories:

Fanuc system

Manual 3 jaw chuck

4 tool electric tool post

Manual Tailstock

complete coolant system

complete lubrication system

LED work light

MPG
