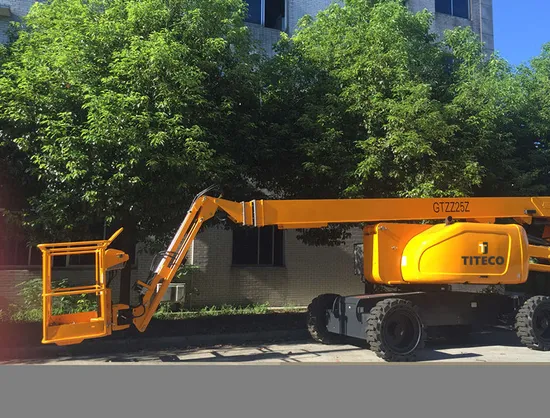

Aerial Man Lift Articulated Boom Lift with 14m Height Working Platform Aerial Work Trailer Mounted Telescopic Articulated Hydraulic Cherry Picker Spider Lift

Product Description

Product Parameters

Model	GTZZ12	GTZZ16	GTZZ20	GTZZ24	GTZZ25
Working height maximum m	14	18	22	26.2	27.1
Platform height maximum m	12	16	20	24.2	25.1
Horizontal reach maximum m	8	9.8	12.6	15.8	16
Up&over clearance maximum m	5	7.75	9.2	9.8	6.8
(LxW)Platform dimensions m	1.1x0.67	1.83×0.76
Length(stowed)m	5.3	7.7	9.07	9.92	9.75
Width(stowed) m	2	2.28	2.38	2.48	2.58
Height(stowed) m	2.26	2.38	2.38	2.48	2.58
Wheelbase m	2.4	2.45	2.45	3	3
Ground clearance(center) m	0.2	0.43	0.43	0.43	0.43
Lift capacity maximum kg	200	230
Platform occupancy maximum	2
Platform rotation	±80°
Vertical jib rotation	140°
Turntable rotation	360°
Turntable tail swing m	0.26	0	0.33	0.28	0.19
Drive speed(stowed) km/h	3.2	42	42	42	4.2
Drive speed(raised or extended) km/h	0.8	1.1	1.1	1.1	1.1
Gradeability	30%	45%
Allowable slope maximum	3°/3°
Turning radius(Inside) m	3	2.61	2.66	2.6	2.6
Turning radius(Outside) m	5.2	5.61	5.66	5.85	5.85
Drive&steer mode	4x4x2
Tire type	33*12-20	33*12-20		36*14-20	385/65-22.5
Engine	Yanmar			Cummins
Power	25.2KW/2200rpm	35.5kW /2400rpm		43kW 500rpm
Fuel tank volume L	40	100		100
Hydraulic oil tank volume L	50	110		150
Control voltage	12V DC
Weight kg	5300	7877	8800	16300	14400

INTRODUCTION
We provide all Boom Lifts include both diesel and electric driven models, with the primary feature being the highly flexible and convenient. Their articulation and rotation in particular allows this type of work platform to out-maneuver various obstacles and work at several points without the need to reposition the base.
With a wide operating range, high efficiency and large load capacity, numerous technical innovations have been incorporated into the design so that the product boasts high-level safety, reliability and operability. Both telescopic and articulated articulating Boom Lifts are widely used for plant installation and maintenance, venue construction and maintenance, construction engineering, large-scale warehousing, aviation and aerospace industry applications, airports and harbors, urban utilities and gardening, curtain wall engineering and more.
FEATURES JIB with a 90 °- 360 ° rotatable platform. The ability to drive and operate at full height Stabilization technology helps good performance Fast elevating boom at full height Unparalleled platform stabilization Smart control system make the lower energy consumption. Compact structure dimension for narrow space work. Straight boom provides greatest horizontal reach Best-in-class grade ability and reach Fastest lift and drive speeds for unmatched productivity PRODUCT DETAILS
Engine Part
4WD System & Electric Power
SHIPPING&DELIVERY
