Multifunction Non Woven Bag Making Machine

Product Description

Product Description Name:NON WOVEN BAG MAKING MACHINE
HBL-C 700/800

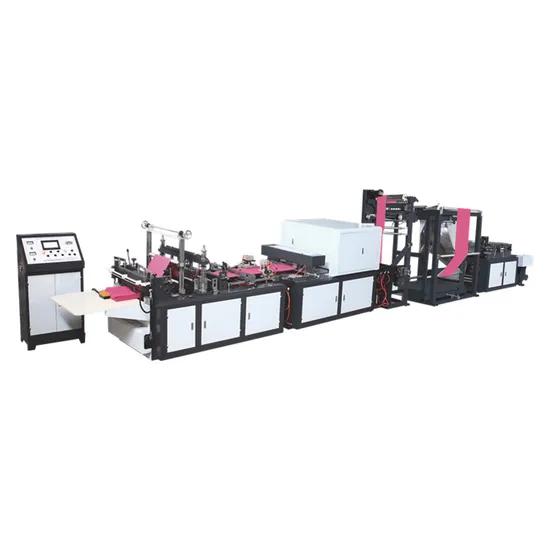

Fully automatic non woven box bag making machine
This newest nonwoven bag making machine is improved.
Advantages:
1. The speed is 160pcs/min, faster than old type machine.
2. The machine is higher reliability, reduced a lot of time for installing.
3. Machine was shortened by 1 m to save space.
4. The appearance of machine is become more artistic.
5. Our engineer can speak English.
Product introduction:
This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as box bag, flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
This machine is suitable for non-woven fabric material. It can make following bags:
1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Handle Loop Bag
4. Flat Bag with Bottom Folding(stand up bag)
5. Box Bag
Product Parameters Main Parameters:

Type	HBL-C700	HBL-C800
Production Speed	20-160pcs/min	20-160pcs/min
Bag Width	100-800mm	100-800mm
Bag Length	200-580mm	200-680mm
Bag-Making Thickness	20-120g	20-120g
Power Supply	380V/220V	380V/220V
Total Power	12-18KW	12-18KW
Overall Dimension (L*W*H)	9.6m*2m*2.1m	9.6m*2.2m*2.3m
