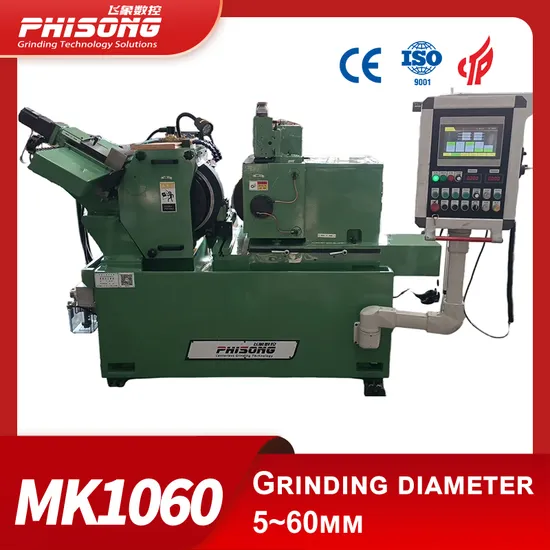

Pump Shaft Plunger Finish Precision Centerless Grinding Machine for Bearing Rings, Pins

Product Description

Product Description
1.Three servo axis, Mitsubishi Q/R series control system (Siemens CNC for option)
a.Axis Y for regulating wheel frame servo feed, min. feeding 0.001mm.
b.Axis X for feeding of grinding wheel dresser.
c.Axis Z for reciprocating of grinding wheel dresser.
2.Machine performance
2.1Machine body
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability
2.2. GW and RW(Regulating wheel).
GW and RW are cantilever type ,easier for wheel changing.
GW fixed on the machine bed, with better reliability and stability.
Adopts multi-pieces bush-bearings for the wheel spindle, better rigidity for grinding durability
2.3. Feeding
The cross shaped roller guideway & ball screw equipped servo motor supports the regulating wheel feeding & ball screw equipped servo motor supports the regulating wheel feeding.
Servo motor drives ball-screw through shaft coupling, min. feed 0.001mm
2.4. Dressing for GW and RW
GW dresser: Servo motor drives ball-screw for feeding and reciprocating.
RW dresser:hand wheel for dresser feeding,gear motor for reciprocating.

2.5.Electric
Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for grinding, dressing,feeding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional.
2.6.Coolant
Cooling tank with magnetic coolant separator,paper tape filter for optional
2.7.Main Accessories

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q /R	1	set	Mitsubishi
Servo motor		3	set	Mitsubishi
Operation display screen	10'	1	set	Kunluntongtai
Ball screw		4	set	Nanjing
Converter for RW	3.7KW	1	pc	Mitsubishi
RW motor	2.2KW	1	pc	Wannan
GW motor	18.5KW	1	pc	Wannan
GW flange and GW		2	pcs	PHISONG
RW flange and RW		2	pcs	PHISONG

2.8.Technical Data:

In-feed
1)Grinding diameter	2-60mm
2)Grinding length	190mm
Grinding wheel specifications	P500*200*305mm
Regulating wheel specifications	PSA350*200*127mm
Grinding wheel speed	1318r/min
Regulating wheel speed(stepless)	10-200r/min
Swiveling angle of regulating wheel
1)In vertical plane	-1°~ 5°
2)In horizontal plane	0°~ 5°
Feed amount per division of the feed hand wheel	0.001mm
Feed amount per division of the Grinding dresser	0.001mm
Height from centerline of gri.wheel & reg.wheel to workrest	250mm
Total power of machine	17.96kw
1)Grinding wheel motor	15kw
2)Regulating wheel motor	1.5kw
Overall dimensions	2050*1680*1380mm
Machine weight	about 3300kg
Machining accuracy
1)Roundness	0.001mm
2)Cylindricity	0.002mm
3)Surface Roughness	Ra0.2um

Grinding Examples&Operations
