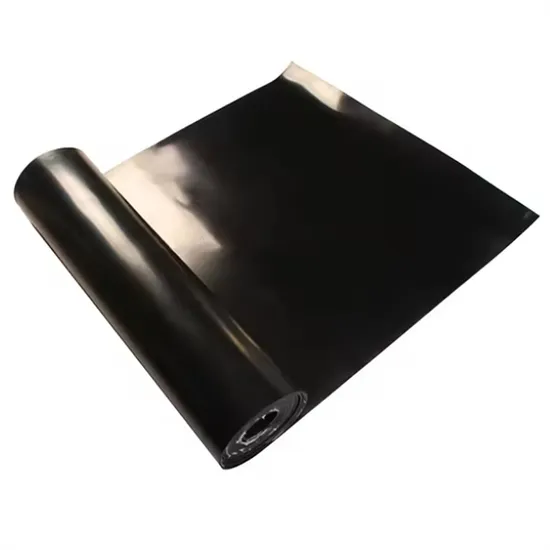

High Temperature SBR High Heat Resistant Rubber Sheet

Product Description

Product Description
SBR /NR/ Natural rubber sheet
Size: (T) 1-100mm * (W) 0.1-4m* (L) 1-200m
Characteristics of SBR/NR rubber sheet
1. SBR rubber sheet with good resistance of abrasion, high temperature, aging.
2. With good waterproof, sealed, and anti-seismic performance in the ordinary environment
3. It is used for coining various rubber ring, gaskets, seals, flooring and so on.
4. Can be chose the self-adhesive backing
5. Color can be black, red, white, green, blue and etc.
With SBR as the main material (including fabric, metal sheet and other reinforcements) , vulcanized products with a certain thickness and a larger area of the sheet, referred to as SBR sheet, alias NBR pad
Application
Puching all kinds of gaskets, and others

Product Parameters

SBR/NR/Natural rubber sheet
Item	Production	Hardness (Shore A)	Specific Gravity(g/cm3)	Tensile strength(Mpa)	Elongation(%)	Operating temperature(ºC)
GB-SBR101	NR/SBR rubber sheet	65	1.8	2	150%	-20to80
GB-SBR102	NR/SBR rubber sheet	65	1.7	2	160%	-20to80
GB-SBR103	NR/SBR rubber sheet	65	1.6	3	180%	-20to80
GB-SBR104	NR/SBR rubber sheet	65	1.5	3	200%	-20to80
GB-SBR105	NR/SBR rubber sheet	70	1.5	3	200%	-20to80
GB-SBR106	NR/SBR rubber sheet	80	1.5	3	200%	-20to80
GB-SBR107	NR/SBR rubber sheet	65	1.5	4	250%	-20to80
GB-SBR108	NR/SBR rubber sheet	65	1.45	5	250%	-20to80
GB-SBR109	NR/SBR rubber sheet	65	1.4	6	250%	-20to80
Size	1-100mmT *1-4m Width *1-200mm Length

Styrene-butadiene rubber (SBR) , also known as polystyrene butadiene copolymer. Its physical properties, processing properties and the use of products are close to natural rubber, some properties such as wear resistance, heat resistance, aging resistance and curing rate than natural rubber is better, it can be used with natural rubber and a variety of synthetic rubber. It is widely used in the production of tyres, rubber belts, rubber hoses, electric wires and cables, medical devices and various rubber products. It is the largest general-purpose synthetic rubber variety, it is also one of the earliest rubber varieties to realize industrial production.

Detailed Photos rubber sheet production process
Company Profile
NANJING GUBAI RUBBER& PLASTIC CO. LTD was established in 2000. It is a limited liability company mainly engaged in the production of rubber products, integrating scientific research, technology, industry and trade. Our company is located in the western suburbs of Nanjing, 36 kilometers away from Lukou Airport and 76 kilometers away from Xinshengwu International Shipping Port, with very convenient transportation.
Our main products include: rubber sheet series; Conveyor belt series; Anti-corrosion lining series; Anti static series; Special rubber series; mold product series and plastic product series, More than 500 varieties and specifications of products, and can develop and produce various high-performance and high-quality rubber and plastic products accordingto customer requirements.
Our company has taken the lead in obtaining ISO19001 quality management system certification in the same industry, and participated in drafting national standards for industrial rubber sheets, national standards for fluororubber under general technical conditions, and industry standards for silicone rubber. The National Rubber Standards Committee has established a sub technical committee for environmentally friendly recycled rubber products and a working group for elastic paving materials in our company. Our company has also successfully established a research and development center in collaboration with the School of Materials Science and Technology, Nanjing University of Aeronautics and Astronautics. The Gubai brand trademark has been rated as a famous trademark in Jiangsu Province and a quality credit product in Jiangsu Province.
Our company is willing to sincerely cooperate with domestic and foreign friends with a sound quality assurance system, rigorous and orderly modern management, and a service tenet of high quality, high reputation,
and high efficiency, to jointly create a better future for the rubber and plastic industry.

Working shop Rubber rolls workshop

we can provide Natural rubber sheet, Nitrile rubber sheet, EPDM rubber sheet, Neoprene rubber sheet, FKM rubber sheet, wear-resistance rubber sheet, fire-resistance rubber sheet, silicone rubber sheet etc.
Rubber strips workshop

Mould Rubber productions workshop


Certifications Orther productions All kinds of rubber gaskets can be provided


Our Advantages 1. Are you a factory or distributor? We are a factory since 2000 . 2. What about the factory size and capability ?
Our factory is about 1800 square meters ,Our capability is about 300000 tons one year .
3. How many employees in your company?How many for production,and how many office people?
There are about 400 employees. 300 for production, and 100 for office people.
4. How many tons can you produce each day?How many containers do you export every month?
We can produce 100 tons each day,and for exporting 500 containers around.
5. What's your annual sales volume?
Around 25 millions US dollar.
6. How do you control your quality?
We inspect three steps:raw material inspection,during production inspection and before warehousing inspection.
7. How often do you inspect your products?
For physical testing,we test every batch,it's about every one hundred meters.
For the surface and size,we check every roll after production and before warehousing.
8. Can you print our logo on the rubber sheet or package bags?
Yes,we can print the logo as customer's design.
9. What's your product guarantee period?
Under the condition in the warehouse,we can guarantee two years no cracks even on our lowest grade product.On used products,it should depend on the using condition.
10. What certificate have you passed?
Our factory has passed ISO9001, ISO14001, ISO45001.Our product has passed reach standard testing,and SGS certificate.
11. How to deal with the faulty products once we got ?
First ,find the reason ,it is the products problem or damaged by the transportation ,no matter what the reason is ,we will change a new part .
12.How to check the quality before shipment ?
You can come to check by yourself, your friend or the third checking institution. Also can by video.
13. Is sample available ?
We can arrange free sample , but the international courier charge is by your side .
