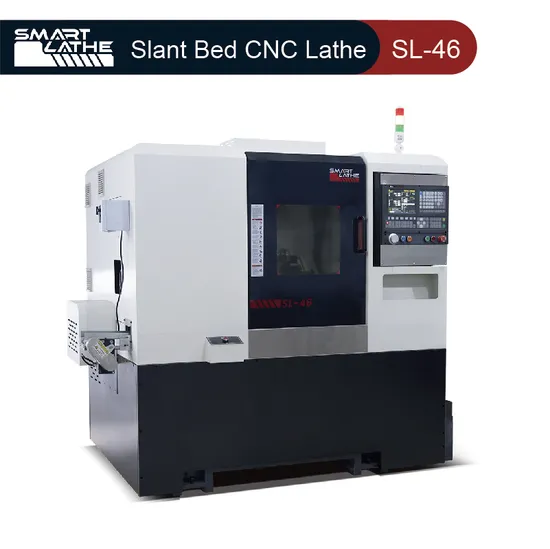

Auto Bar Feeder 3 Meter 3 Axis Slant Bed CNC Lathe Machine with Live Tool (SL-46)

Product Description

Auto Bar Feeder 3 Meter 3 Axis Slant Bed CNC Lathe Machine with Live Tool (SL-46)
Product Description
When it comes to high-throughput & high-precision machining of the complex turning parts, our SL-46 has become an industry benchmark. With a robust machine structure, highly-rigid construction, and built-in software, this machine is quite user-friendly even for entry-level machinists. An extra-large work envelope to provide roomy space for the live tooling function that provides multi-axis milling and turning and off-center line Y-axis milling capability.
Features

With high rigidity body structure, the lathe base is FEM analyzed to ensure the superb rigidity and stability of the lathe.

The patented slant bed design increases the X-axis travel to 700mm and Z-axis to 230mm optimizing the lathe size and stability.

Turning, drilling, tapping, and contouring functions can reduce cycle processing and improve production efficiency.

The main spindle has with C-axis function, high speed, high precision, and low vibration which can make the workpiece precise. Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

Equips with Taiwan 25mm ball screw rod rail and 25mm linear guideway to provide precision and low vibration tool carriage movement.

Equips with auto lubrication system to ensure transmission system is smooth and long-lived.

Robust hydraulic collet chuck can hold bars up to φ45mm and a single workpiece up to φ280mm.

SmartBrain CNC system co-works with quality electrical parts to provide operation and durable use.

Standard Configuration

Fully enclosed splash guard with top roof	3.7KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 4000 rpm, A2-4	Automatic lubrication system	Coolant system
CNC Simulation	Hydraulic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)
Coolant gun	Toolbox and user manuals	The tool holder (5 Sets)
Collet (1 Set)	C axis

Applications
Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to φ45 mm or single workpieces up to φ280mm.
Optional Accessories

Disk Brake Device

Oil Bar Feeder

Follow Rest

3-Jaw Hydraulic Chuck with Soft Jaws

Servo Turret

Polygon Turning

Oil Mist Collector

Part Catcher

Servo Bar Feeder

FAQ
1: How can I choose machines? A: for the model selection, please send us the drawing of the turning part, and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.2: What are the main products of your company? A: SmartLathe concentrated all its resources to develop successfully the SL series of CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget. 3: Where is our factory located? How can I visit there? A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.4: What are the Trade & Payment Terms? A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.5: What's the MOQ? A: 1 set. We will offer you a better price if you order more.6. What is the delivery time? A: The full series of standard models are in stock. For a customized one, it depends.7. Do you have any certificates? A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.8. What is the warranty period? A: The warranty period is generally 13 months after the B/L date.9. Machine installation. A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.10. Technical Support A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
