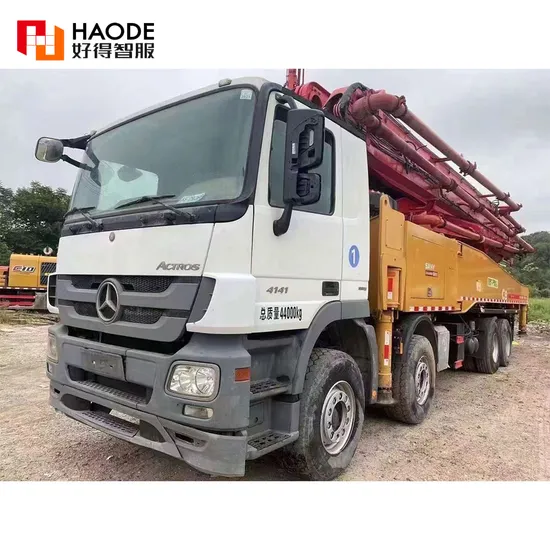

Used 56m Pump Truck 2017 with Benz Chassis
| US$38,000.00-65,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SYM5443THB 560C-8A
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
56m
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Product Name
Pump Truck
Power
300kw
Engine Brand
Benz Om501la. IV /3
Max. Vertical Conveying Distance
56m
Year
2020
Unique Selling Point
High Operating Efficiency
Hydraulic System Type
Open Type System
Maximum Aggregate Size
40 mm
Weight
41460 Kg
Hopper Capacity
/
Power Type
Diesel
Max. Horizontal Conveying
51m
Theory Output Capacity
170m3/H
Transport Package
Standard Package
Specification
13760x2500x4000mm
Trademark
BEST
Origin
China
HS Code
8705909100
Production Capacity
10000 Piece/Pieces Per Month
Product Description
| Description | Unit | Parameter value | |
| Outline dimension | mm | 13760x2500x4000 | |
| Overall weight | kg | 41460 | |
| Chassis | Model | BENZ Actros 4141 | |
| Max. speed | km/h | 80 | |
| Max. grade-ability | % | / | |
| Wheelbase | mm | / | |
| Tire | / | ||
| Engine | Model | OM501LA. IV /3 | |
| Max. power | kW | 300 | |
| Max. torque | N·m/(r/min) | / | |
| Displacement | L | 12 | |
| Pumping system | Theoretical output | m3/h | 170 |
| Concrete pumping pressure | MPa | 12 | |
| Theoretical pumping times | Time/min | 24.5 | |
| Delivery cylinder diameter ×stroke | mm | φ260×2200 | |
| Placing boom | Reach height | m | 56 |
| Reach depth | m | 36.6 | |
| Slewin gradius | m | / | |
| Slewing angle | ° | ±360 | |
| Stabilizer span | Longitudinal span of stabilizer | mm | / |
| Transverse span of front stabilizer | mm | 9300 | |
| Transverse span of rear stabilizer | mm | 11670 | |
Product Pictures
Haode positioned as a third-party service platform, providing cost-effective parts and services for commercial vehicles and construction machinery exported from China, and is committed to building a global chain service brand network. Haode pursues the marketing model of technological innovation, and takes the lead in adopting the "Online + Offline" business model combining smart internet and global entity agency; We provide overall after-market solutions to effectively promote China Enterprise solution. Our team has more than 10 years of work experience in the industry, 20 software development engineers, 25 parts technical experts, 30 maintenance technical experts remote service, and 200+ part-time senior maintenance technicians in various overseas markets. Haode has established strategic partnerships with 11 mainstream commercial vehicle and construction machinery companies in China, and has obtained strong spare-parts technology and maintenance technical support; Spare-parts and service business covers light trucks, medium trucks, heavy trucks, and buses for commercial vehicles etc., pump trucks, mixer trucks, cranes, excavators, loaders and other types of construction machinery. Haode maintains a long-term cooperative relationship with 500 outstanding parts suppliers in China, relying on platform advantages and centralized procurement, to provide customers with multiple categories of high-quality and competitive price spare-parts. Relying on the continuous improvement of the Internet intelligent service platform, Haode provides customers with "convenient", "efficient", "customized" and "remote intelligent" services, and constantly helps partners to achieve customer development and management, order management, service management and inventory management.
