Strong Signal 1608 Channels Gnss Rtk Base and Rover Efix F4 F7/F7+ GPS Surveying Equipment

Product Description

Product Description

F7+

BEST-IN-CLASS SIGNAL TRACKING 1.The integrated advanced 1608-channel GNSS technology takes advantage of GPS, Glonass, Galileo and BeiDou, in particular the latest BeiDou III signal, and provides robust data quality at all times. The F7+ extends GNSS surveying capabilities while maintaining centimeter-level survey-grade accuracy. GNSS surveying has never been more efficient. PORTABLE INTERNAL UHF BASE+ROVER 2.The F7+ features a built-in transceiver radio module compatible with major radio protocols, making it the perfect choice for a portable built-in UHF base and rover kit with fewer accessories. F7+ is a highly productive NTRIP rover when used with a handheld controller or tablet and connected to a GNSS RTK network. The F7+ is a highly rugged and reliable receiver without downtime used for surveying of any terrain, mapping, or construction site.

Product Parameters

F7+
Channels	1608 channels
GPS	L1C/A,L2/C, L2P(Y), L5
GLONASS	L1, L2
Galileo	E1, E5a, E5b, E6*
BeiDou	B1l, B2l, B3l, B1C,B2a,B2b
QZSS	L1,L2, L5, L6*
PPP	B2b-PPP
SBAS	L1,L2
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm+ 1 ppm RMS Vertical: 15 mm+ 1 ppm RMS Initialization time: < 10s Iitaliation rlability:> 99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS
Post - processing static	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm+ 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS Vertical: 0.8 m RMS
Autonomous	Horizontal: 1.5 m RMS Vertical: 3.0 m RMS
Positioning rate	1Hz,5Hz and 10Hz
Time to first fix	Coldstart: < 45 s Hotstart: < 10s Signal re-acquisition:<1s
RTK tilt compensation	Additional horizontal pole-tit uncertainty typically less than 10 mm + 0.7mm/° tilt
Hardware
Size (LxWx H)	119mmx119mmx85mm(4.7 inx4.7 inx 3.3 in)
Weight	0.77 kg (1 .60 Ib)
Environment	Operating: -40°C to +65°C (-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof, protectec from temporary immersion to depth1m
Shock	Survive a 2-meter pole drop
Tilt sensor	Calibration-free IMU for pole- tilt compensation. Immune to magnetic disturban
Front panel	4 Status LED ,2 Buttom
Communication and Data Recording
| Wi-Fi	802.11 b/g/n, access point mode
Bluetooth	V4.1
Ports	1 x USB Type-C port (data download, charging firmware update) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410- 470 MHz Transmit Power:0.5W and 1W Protocol: EFIX, Transparent,TT450 Satel Range: Typical 3km, up to 8km with optimal conditions Link rate: 9600 bps
Data formats	CMR input and output RTCM 2.x, RTCM 3.x input and output NMEA 01 83 output HCN, HRC and RINEX static formats NTRIP Client (on PDA network)
Data storage	8 GB high-speed memory
Electrical
Power consumption	2.2W (depending on user settings)
Li-ion battery capacity	Built-in non-removable battery 6800 mAh
Operating time on internal battery	RTK Rover: up to 24 h UHF RTK Base: up to 10.5h Static: up to 25h
External power	5V/2A

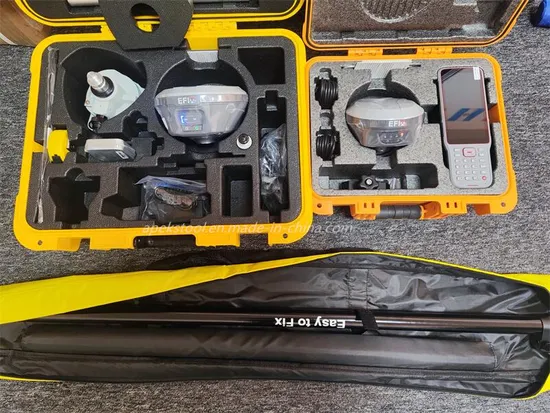

Packaging & Shipping
