CNC Flat Bed Lathe Machine on Stock with Best Price

Product Description

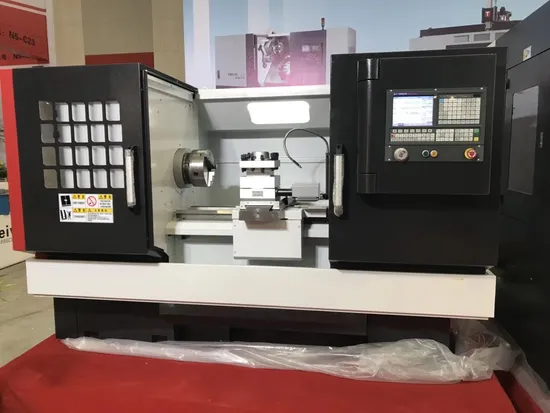

This machine is a half closed loop CNC lathe machine, with a centralized automatic lubrication device, 4-station or 6-station electric tool post, once programming input can automatically realize the mechanical parts of the cylindrical, inner hole, thread, complex surface machining.The machine using CNC control system, control 2 axis movement at the same time, there is movement, linear and circular interpolation, thread cutting, all kinds of cutting cycle, coordinate system seted, the tool tip R and cutter offset compensation, and so on fully repair and auxiliary functions .Program compiled USES the international ISO standard, can manually entered program use the key on the panel or Input by data communication interface.
Horizontal bed structure, the main components such as the bed and base adopt high strength resin sand casting materials, fully aging treatment, guideway by the high frequency quenching treatment, to ensure the stability of the machine tool use for a long time.X ,Z guideway sticking PTFE for durable.
The spindle has two shifts (high /low) speed, manual change shift, stepless change speed in one shirft, low gear 80- 400 RPM, high 400- 2000 RPM, the bearing in front of the spindle system adopts double row cylindrical roller bearing, the behind bearing is high precision, high speed angular contact bearings, high speed, high precision, strong rigidity, small thermal deformation, smooth running, low noise characteristics significantly.

CLK6140D/2 Items		UNIT	750		1000
Max. swing over bed		mm	400
Max. swing over cross slide		mm	170(standard)/150( with T-slot)
End surface of standard chuck (doesn't contain claws) to enter of tailstock		mm	680		1000
X/Z axis travel		mm	220/550		220/860
Z direction guideway span		mm	320
Spindle bore		mm	51(standard manual chuck )
Code for spindle nose			A2-6
Spindle nose tape		No	Morse 6
Spindle speed range		rpm	2 shifts:80-400,400-2000
Tailstock sleeve dia.		mm	55
Tailstock		No	MT4
Tailstock sleeve travel		mm	150
Electric tools		pcs	4/6(option)
Tools Size		mm	25×25
Screw pitch		mm	X:4;Z:6
X, z rapid feeding		m/min	X:6; Z:8
X/z axis smallest unit set		mm	0.001
Main motor		KW	5.5KW
cool pump			AB-25
Cool pump motor		w	90
Power form	AC voltage	V	3 380±10%
	Frequency	HZ	50±10%
Total Power capacity		KVA	10
Net weight		Kg	1800	1900
Overall dimension		mm	2000×1100×1650	2320×1100×1650

Standard configuration: 1) Flat bed 750mm; 2) the surface contact with guideway of the longitudinal,cross slide carriage sticking PTFE.
3) Frequency conversion 2 shifts(manual change shift):80-400RPM,400-2000RPM;Ordinary main motor: 5.5KW;
4) Spindle outer cycloid pump forced lubrication;
5) Manual 3 jaw chuckφ200;
6)4 station electric tool post;
7)General tailstock;
8)lead screws/guideway auto oil lubrication;
9)double door, half-full protection;
10)Stationary electronic handwheel;
11) Work light;
12)Ordinary cooling
13)Manual iron plate;
14)GSK980Tc CNC system.
4.Optional configuration:
1)FANUC,Siemens,Mitsubishi,HNC,GT66T,KND;
2)1000mm Flat bed;
3)Manual 3 jaw chuckφ250;
4)hydraulic chuck / Rotary oil cylinder/ Hydraulic tailstock.
