High Speed Long Cutting Flutes Corner Raduis Cutting Tools
| US$4.50-75.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
Corner Raduis Cutting Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Condition
New
Bending Strength
>=4000
Suitable for
Copper, Cast Iron, Carbon Steel, Mould Steel
Helix Angle
35 Degree
Grain Size
0.6um
Coating
Altin
HRC
55
Free Service
OEM
Finish Surface
Plain Surface, The Side, Socket
Transport Package
1PC in a Plastic Tube, 10PCS a Group
Specification
SGS
Trademark
Hiboo
Origin
Changzhou Jiangsu China
HS Code
8207709000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
35.00cm * 18.00cm * 15.00cm
Package Gross Weight
0.080kg
Product Description

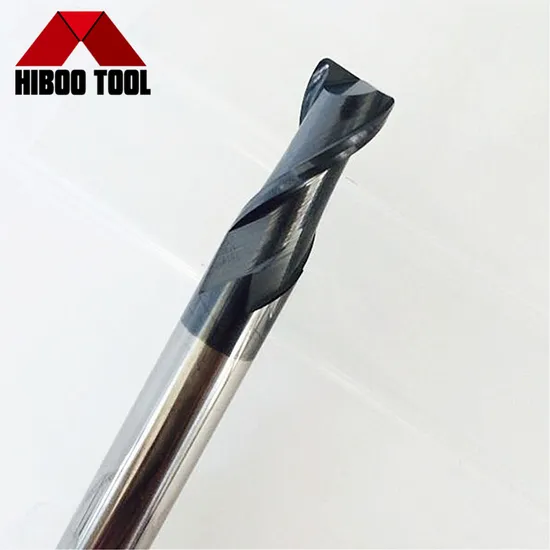

HRC55 Altin coated corner raduis carbide end mills1. HRC55 Micro grain carbide rod
| HRC55 |
| YG10.2 &WF25(Taiwan) |
| Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
2. Made by world latest 5-AXIS CNC tools grinder, promise the quality and precision of cutter.
3. Super TiSiN Coating reduce the coeffiction of friction, and improve the tools life much.
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Suitable for processing steel, stainless steel, nickel alloy, Titanium alloy, cast iron,
Plastic and other materials' hardness below HRC55
| order number | cutting | Flute | Shank | Corner | A.0.L | |
| d | l | D | R Corner | L | ||
| 1×3×4D×R0.2×50L×2F | 1 | 3 | 4 | R0.2 | 50 | |
| 1×3×4D×R0.3×50L×2F | 1 | 3 | 4 | R0.3 | 50 | |
| 1.5×3×4D×R0.2×50L×2F | 1.5 | 4 | 4 | R0.2 | 50 | |
| 1.5×3×4D×R0.3×50L×2F | 1.5 | 4 | 4 | R0.3 | 50 | |
| 2×6×4D×R0.2×50L×2F | 2 | 6 | 4 | R0.2 | 50 | |
| 2×6×4D×R0.3×50L×2F | 2 | 6 | 4 | R0.3 | 50 | |
| 2.5×8×4D×R0.2×50L×2F | 2.5 | 6 | 4 | R0.2 | 50 | |
| 2.5×8×4D×R0.5×50L×2F | 2.5 | 6 | 4 | R0.5 | 50 | |
| 3×8×3D×R0.3×50L×2F | 3 | 8 | 3 | R0.3 | 50 | |
| 3×8×3D×R0.5×50L×2F | 3 | 8 | 3 | R0.5 | 50 | |
| 3×8×4D×R0.3×50L×2F | 3 | 8 | 4 | R0.3 | 50 | |
| 3×8×4D×R0.5×50L×2F | 3 | 8 | 4 | R0.5 | 50 | |
| 4×10×4D×R0.5×50L×2F | 4 | 10 | 4 | R0.5 | 50 | |
| 4×10×4D×R1.0×50L×2F | 4 | 10 | 4 | R1.0 | 50 | |
| 4×10×6D×R0.5×50L×2F | 4 | 10 | 6 | R0.5 | 50 | |
| 4×10×6D×R1.0×50L×2F | 4 | 10 | 6 | R1.0 | 50 | |
| 5×13×6D×R0.5×50L×2F | 5 | 13 | 6 | R0.5 | 50 | |
| 5×13×6D×R1.0×50L×2F | 5 | 13 | 6 | R1.0 | 50 | |
| 6×15×6D×R0.5×50L×2F | 6 | 15 | 6 | R0.5 | 50 | |
| 6×15×6D×R1.0×50L×2F | 6 | 15 | 6 | R1.0 | 50 | |
| 8×20×8D×R0.5×60L×2F | 8 | 20 | 8 | R0.5 | 60 | |
| 8×20×8D×R1.0×60L×2F | 8 | 20 | 8 | R1.0 | 60 | |
| 8×20×8D×R1.5×60L×2F | 8 | 20 | 8 | R1.5 | 60 | |
| 10×25×10D×R0.5×75L×2F | 10 | 25 | 10 | R0.5 | 75 | |
| 10×25×10D×R1.0×75L×2F | 10 | 25 | 10 | R1.0 | 75 | |
| 10×25×10D×R1.5×75L×2F | 10 | 25 | 10 | R1.5 | 75 | |
| 10×25×10D×R2.0×75L×2F | 10 | 25 | 10 | R2.0 | 75 | |
| 12×30×12D×R0.5×75L×2F | 12 | 30 | 12 | R0.5 | 75 | |
| 12×30×12D×R1.0×75L×2F | 12 | 30 | 12 | R1.0 | 75 | |
| 12×30×12D×R1.5×75L×2F | 12 | 30 | 12 | R1.5 | 75 | |
| 12×30×12D×R2.0×75L×2F | 12 | 30 | 12 | R2.0 | 75 | |
7.Hiboo Shipping and delivery
| Samples | 3-7 workdays | |||
| Bulk | 7-30 workdays ,it will depond on the order quantity | |||
| Samples | TNT, EMS,DHL, Fedex,UPS | |||
| Bulk | TNT, EMS,DHL, Fedex,UPS , By Common Air ,By sea | |||
8.Why Choose Hiboo Tools
| 1.Several years' professional producting and exporting experience | ||||
| 2.Advanced RD department meet your special demands | ||||
| 3.High precision CNC machines,high standard and strict inspection | ||||
| 4.Custom demand are welcomed ,OEM and ODM Service | ||||
| 5.Fast delivery time and Convenient Transportations | ||||
| 6.More than 20000 products are available | ||||
| 7.For your suggestions or complaints,We will handle them Soonest |
9.RFQ
| 1.Are you manufacturer or trading company ? | |||||
| We are Professional manufacturer with own export&import license. More than 10 year exporting experience. | |||||
| 2.What cnc machines do you use? | |||||
| More than 10 pcs ANCA ,Walter CNC grind machines ,and professional staff to make sure the good quality , with short delivery time . | |||||
| 3.What's your incoterm? | |||||
| FOB shanghai/Ningbo, CIF , CFR ,EXW | |||||
| 4.Can you send products to our Forwarder in China? | |||||
| Yes,with our pleasure to send goods to your China forwarder. | |||||
| 5.Can you do the OEM or ODM? | |||||
| Yes, we can. We can laser your logo and brand on the cutter's shank , printed lable on the box. | |||||
| 6.Will you attend International Exhibition? | |||||
| Yes, we had attended exhibitions in India, Thailand, Vietnam, Taiwan, Turkey etc. We'll plan to go more fairs. | |||||
| 7.Can we be your distributor ? | |||||
| Yes, of course . Welcome to contact us for this matter. | |||||
| 8. Can you product special cutting tools according to drwaing ? | |||||
| Yes We can. We will check the drwaing and reply you in 1 workday. | |||||
| 9. Do you Have any certificate of your factory? |
