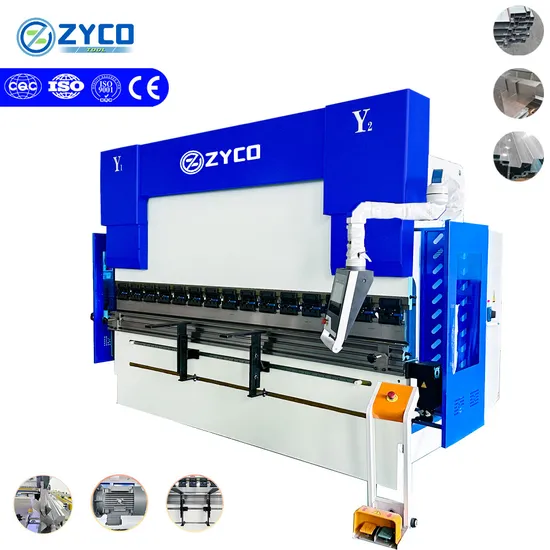

Synchronized Press Brake Dobladora De Tubos Wc67y 250t 3200 Da41s 6 Axes E21ventilation Ducts Hydraulic Press Brake

Product Description

1. Control system
Numerical control Systems (CNC) : Common CNC systems, such as DELEM, ESTUN, CYBELEC and other brands, can provide greater accuracy and automation for complex bending operations. Manual control: suitable for some simple bending tasks, usually the price is low, the operation is more intuitive.
2. Hydraulic system
Standard hydraulic system: Most bending machines use hydraulic drive to provide strong bending force. Electro-hydraulic servo system: This configuration provides higher accuracy and energy savings for demanding production environments.
3. Table and slider
V-shaped groove table: used to adapt to different thickness and shape of the plate, improve the bending effect. Anti-slip table: increase friction, reduce workpiece sliding, ensure bending accuracy. Automatic tool setting system: Through laser, sensor and other automatic alignment mold and table, reduce human error.
4. Upper mold and lower mold
Different mold types: Different molds can be selected according to specific needs, such as straight mold, U-mold, V-mold, etc. Rapid mold change system: can improve mold change efficiency, reduce production downtime.
5. Rear stopper system
Manual rear stopper: suitable for simpler operation with lower cost. CNC back stop: provides higher accuracy and is suitable for mass production, especially in positions that require frequent adjustments. Automatic back stop: Automatic adjustment through the CNC system can improve production efficiency and reduce human error.
6. Auxiliary devices
Laser alignment system: helps to accurately position the workpiece, especially in high-precision bending plays an important role. Automatic feeding system: can automatically feed and transport plates, suitable for automated production lines, reduce manual operation. Die heating/cooling system: Used to increase bending efficiency and die life for high volume production.
7. Electrical system
Protective devices: such as photoelectric safety protection devices, mechanical safety protection devices, to ensure the safety of operators. Electrical overload protection system: prevent electrical system failure or short circuit to ensure stable operation of equipment.
8. Servo drive
Electric servo drive: Suitable for high-precision bending, helping to reduce energy consumption and provide a smoother operating experience. Traditional hydraulic drive: suitable for lower requirements of production tasks, smooth work, low cost.
9. Other configurations
Adjustable bending Angle and speed control: Some high-end bending machines allow precise adjustment of bending Angle and speed to meet complex process requirements. Automatic bending compensation system: reduce errors due to elastic rebound of the sheet.

This page doesn't support show parameter one by one. If other model, pls consult us.
Parameter		Unit	Value
Common Model			63Tx2500	100TX3200	160Tx3200	200Tx4000
Pressure		KN	630	1000	1600	2000
Bending Length		mm	2500	3200	3200	3200
Column Distance		mm	2030	2600	2600	2600
Max Opening Height		mm	E=440	E=480	E=500	E=520
Throat Depth		mm	D=250	D=320	D=320	D=320
Slide Stroke(Y-axis)		mm	170	200	200	220
Slide Moving Speed	No Loading	mm/s	200
	Pressing		12
	Returning		170
Main Motor Power		KW	5.5	7.5	11	15
Machine accuracy	Y slider repeat	mm	≤±0.02
	Y slider positioning	mm	≤±0.02
	X, R back gauge repeat positioning	mm	≤±0.05
Size (L*W*H)		m	3 × 1.8 × 2.5	3.8 × 1.85 x 2.6	3.8 × 1.85 × 2.65	3.8 × 1.9 × 2.65
Weigth		KG	5500	7500	9500	12000

FAQ:
1. Are you a manufacturer? Can we visit your factory?
We are a manufacturer, located in Anhui, China. We have our own product design team.
You are welcome to visit our factory and check the quality of our machines on site, any problems will be solved on site at the first time.
2. What are the advantages of your machines? How can I trust the quality of your products?
The main configuration is imported high-quality products, and the professional product quality inspection team ensures the top quality, precision and life of the machine.
For example, Germany Bonsch Rexroth Valve Group, Germany Siemens Main Motor, Schneder Electric System, etc.
Once the test is qualified, our machine will be sent out. So the quality of our products is stable and reliable.
3. After placing an order, can you update the production process information in time?
After confirming your order, we will update you the production details by email and photos.
4. Can we be your agent?
Yes, we are looking for global agents, we will help agents to perfect the market and provide all services, such as machine technical problems or other after-sales problems, at the same time, you can get big discounts and commissions.
5. What payment methods do you accept?
You can pay to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance against copy of B/L.
6. What is the product warranty?
We offer warranty on our materials and workmanship. Our commitment is to make you satisfied with our products. Whether warranty or not, our company culture is to solve all customer problems and make everyone satisfied.
7. How about the shipping cost?
The shipping cost depends on the delivery method you choose. Express delivery is usually the fastest but also the most expensive way. For bulk goods, sea shipping is the best solution. We can only give you the exact shipping cost after we know the details of quantity, weight and method. Please contact us for more information.
8. Do you accept customer logos and customization?
We accept all kinds of customization, including logos and machines.
If you are interested, please get in touch with us.
