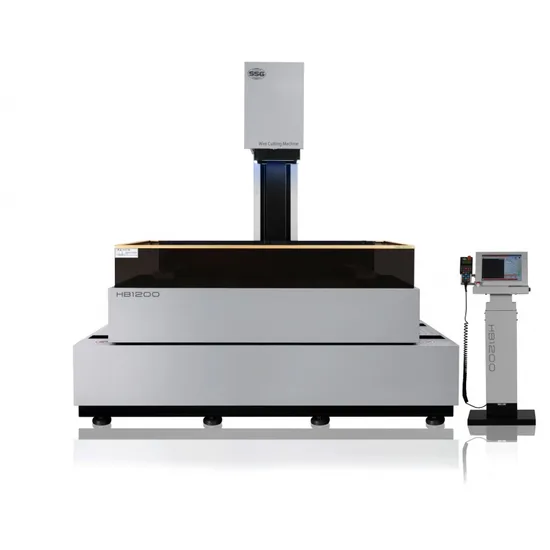

Metal Ssg Large Stroke Wire Cutting EDM with CE Good Service Hb1200

Metal Ssg Large Stroke Wire Cutting EDM with CE Good Service Hb1200

US$600.00 1 Piece (MOQ)

Basic Info.

Model NO.
HB1200
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metallurgy, Universal, Stainless Steel, Electrical
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001, UL
Condition
New
Precision
CNC U;M Class Control Accuracy
Ra
Less Than 0.6 μm
Max Workpiece Weight
8000kgs
Maz. Taper Cutting
±10°
Max. Workpiece
2030*1240*600mm
Transport Package
Wood Case Packing and Vacuum-Packed
Specification
400*300mm ± 10° /100mm
Trademark
SSG
Origin
China
HS Code
8456301090
Production Capacity
1200 Sets/Year

Product Description

Product Features
1.Multi-cutting function
2.Best roughness Ra<0.6um
3.Max.cutting speed hit 300mm2/min
4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting.
5.Professional high-quality industry computer and international brand parts makes the products good performance.
6.X/Y/U/V/Z adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance
7.High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation
8.High-strength resin castings ensure the machine body having enough rigidity and strength9.Handy control

Product Parameters
Machine model HB1200
Worktable dimension(L×W) 1650×900mm
Worktable travel(X×Y) 1200×900mm
Max.part weight 5000kg
Max.workpiece thickness 600mm (800mm option)
Max.taper angle/height ±10°/100mm
Max.machining speed 300mm2/min
Max. machining currents 12A
Best roughness Ra≤0.6µm
Diameter of wire 0.1~0.20mm
Machine tool dimensions(W×D× H) 4350mm×3405mm×2860mm
Machine weight 6000Kg

Detailed Photos
Four-axis (X, Y, U and V) AC servo integrating low-speed wire cutting technologyand combined with four-axis ball screw and linear guide brings unprecedentedaccuracy guarantee and substantially improves taper machining performance.
Protect Environment
Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area. The brand-new elevating manager make it more convenient to set work-pieces and greatly saving the space.
LED light
LED light with working indicator light, so you can check the equipment's running state at any time.
Two ways of wire threading
It meet different machining needs, and helps to change the guider much easier.
Centralized lubrication
Centralized Lubrication for screw of guide rails keeps workshop clean and tidy.

Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )
Forward-looking design concept and wide use of low-speed wire cutting technologies ensureunprecedented machining performance and realize machining reliability and consistency on thebasis of high efficiency.

Nonelectrolyte power supply technology
The titanium alloy minimizes thecontamination on the surface of materials through discharge controlnduring machining with nonelectrolytic power supply, preventing oxidation andiscoloration on the surface
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality
Maching Features

Checking Instrument and equipment
Package for exporting

Sweeden Distributor final acceptance for HB800

HB800 in Sweeden cutomer's workshop

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Company History
1966 :Suzhou No.3 Optical Instrument Factory1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based on Single-board machine controller1984 :DK7725D machine won the NationalSliver Medal1989 : The company entered into partnership with COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venture called Suzhou Sanguang Electric MachineryCo.,Ltd1994 : Sodick Co.Ltd Japan entered into partnership and the name of the company was changed into Suzhou Sodick-Sanguang Electric Machinery Co.,Ltd1995 : Started to research and produced DK7632 Brass wire cut EDM machine
2008:Relocated at No.145 Songshan Road, Suzhou China, plant area 38060m²2010 :Multi-cutting molybdenum wire cut machine, HA series were released
2012 :The latest Brass wire cut machine, LA series were released2014 :Became a public company ,stockcode :4304142016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
Certifications
HB design get honor of IF DESIGN AWARD AND RED DOT AWARD IN 2017
CE CERTIFICATE FOR EUROPE MARKET
