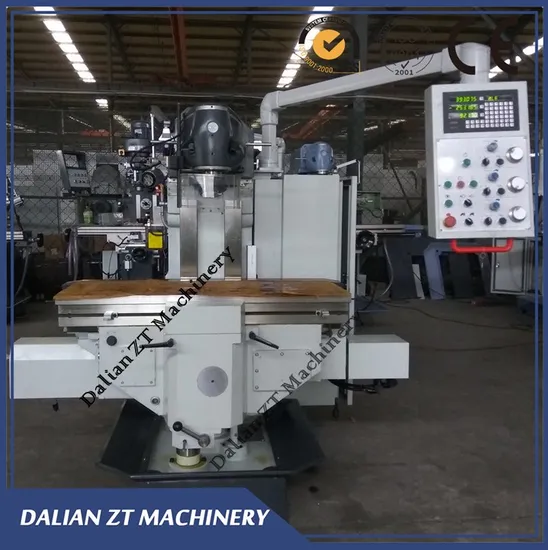

Russia type RAM Milling Machine with Rotary Milling Head X6263Cx16

Product Description

Features:
* The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;
* One handle is used to control forward/backward movement in X,Y,Z-axis

Machine model	X6232x16	X6232Cx16
Table size	320x1600mm	320x1600mm
T-slot (No. width x Distance)	3-18x70mm	3-18x70mm
Table rotary angle	±45°	±45°
Max. working load	500kg	500kg
Travel (longitudinal/cross/vertical-manual)	800x255x320mm	800x255x320mm
Travel (longitudinal/cross/vertical-automatic)	780x240x300mm	780x240x300mm
Spindle motor power (H/V)	5.5/3kW	5.5/3kW
Spindle bore (H/V) Tool shank (H/V)	ISO(50/4)x	ISO(50/4)x
Spindle speed (H/V)	18 No.s-1500/9No.S 125-2000rpm	18 No.s-1500/9No.S 125-2000rpm
Distance from spindle centerline to worktable	30-350mm	30-350mm
Distance from vertical spindle nose to worktable	40-425mm	250-570mm
Distance from vertical spindle centerline to column guideway	350mm	350mm
Vertical head swivel angle	360°	360°
Feed rate (longitudinal, cross, vertical)	1.5kW	1.5kW
Weight of machine	3100kg	3100kg
Overall dimensions of machine	2294x2045x2158mm	2294x2045x2158mm

Standard accessories:
Handle
Spanner
Draw-bar
Cooling pipe pillar
Milling arbor B-22X60X390 B-27X60X390 32X60X750
Milling arbor for milling machine end cutter 3-40
Cylindrical cutter chuck155(40#)
Sleeve for cutter shank 2-3
Reduction sleeve 3-2
Cutter Arbor 22X35X110 27X40X110
Milling arbor for head22X63
Face milling cutter arbor wrench 16 30
Miller draw-barM24X720
Anchor boltM20X500
Single wrench50
360° Rotary Milling Head
WORKSHOP
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
