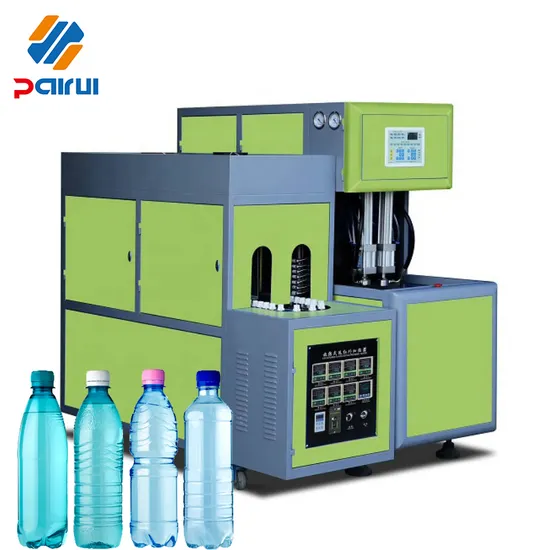

Factory New Semi Automatic 2 Cavity Plastic Water Bottle Blowing Machine

Product Description

------Description------
The Bottle Blowing machine is a device that uses blow molding technology to make plastic particles into hollow containers. It operates stably, consumes less power, has wide applicability, is easy to maintain, saves time and effort, and effectively improves production efficiency.

------Parameter------

Category	Project	PRSAB---3L
The Finished Product	The Raw Material	PET
	Volume	3L
	The Theory of Production	1500-2200PCS/H
	The Maximum Height	350MM
	The Largest Diameter	115MM
Template Size	Theoretical Output	360*410IMM
	Max Mold Thickness	220MM
	Min Mold Thickness	90MM
	Clamping Force	8T
	Open Touch the Trip	155MM
Auxiliary Machines	Air Compressor	≥3.013.0 15KW
	Cold Dryer	≥3.0/3.0 3.0MPA
	Filters	≥3.013.0 3.0MPA
The Host Power	Power	8KW
	Voltage/Frequency (three-phase)	380150-60V/HZ
	Working Air Pressure	0.8-1.0MPA
	Blowing Bottle Air Pressure	2.0-3.0MPA
Size	Host	1700*640*1600MM
	Oven	1720*585*1360MM
Weight	Host	550*2KG
	Oven	260KG

------Core Accessories------
1. With PLC and computer,empower stable and easy operation machine. 2. Selection of Korean PNC and domestic famous brand gas components.
3. Energy-saving design and reasonable & compact mechanical design.
------Advantage------
The Blow Molding Machine is suitable for various shapes of bottles, such as Water Bottles, Cosmetics Bottles, Carbonated Beverage Bottles, Juice Bottles, Edible Oil Bottles, Beer Bottles, Wild Mouth Bottle and so on.
------Flow Layout------
The blowing process of the bottle blowing machine main steps:
1) Firstly, put the heated plastic embryo into the mold; 2) Use a clamping cylinder to tighten the mold; 3) Use high pressure or mechanical structure to lock the prototype; 4) Medium and high pressure pre-blowing, while stretching the cylinder action to expand the blank; 5) High-pressure blowing, the preform is shaped according to the mold, and the pressure is kept for a certain period of time; 6) Release the high pressure in the formed bottle, reset the cylinder-take the bottle.
------Company Profile------
Taizhou Pairui Packaging Machinery Co., Ltd. is a leading intergrated company owning five factories in different cities of China to provide the plastic machine, filling machine, packaging machine and plastic packaging products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Along with the development of international businesses, Pairui has build cooperating relationship with various companies from more than 100 countries around the world.
With more than 15 years of development, the company has always adhered to the principle of "Reputation First, Quality Wins" and manufactured high-quality products. The company will continue to develop, strive for excellence in technology, continuously innovate technology, and provide more complete and excellent products, as well as better and comprehensive services. Here, our company sincerely hopes to cooperate with global customers, develop together, create brilliance, and achieve a win-win future!
---------Certificate---------
---------Exhibition---------
---------Partner---------
---------Packing & Delivery---------
---------Related Products---------
We have a professional team that can provide one-stop service.
If you have any questions, feel free to contact us at any time.
---------FAQ---------
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine, Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc

Q2: How to tell your enquiry ?
A3: Contact us by email, phone call, fax, instant Messenger (Trade manager, Whats app, Skype) and let us know your inquiry.

Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.

Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support, online support.
- If you need, we can also arrange our professional technical to go aboard to your factory, they will help and teach you how to install and maintenance the machine.
