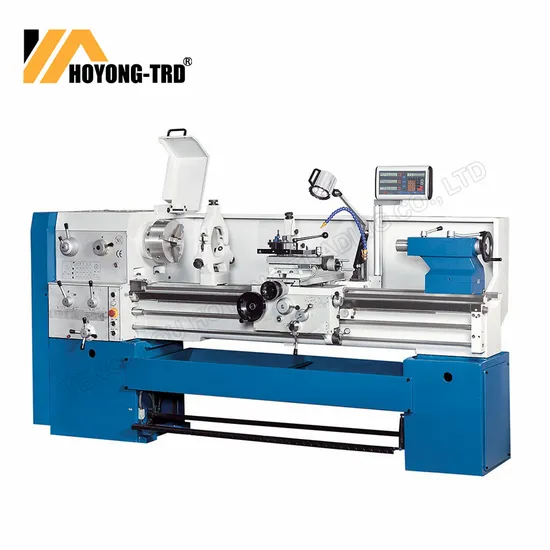

Hot High Speed Precision Horizontal Gap Bed Turning Engine Manual Lathe CD6240c/CD6250c/CD6266c/CD6266c
| US$7,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CD6240C
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
400mm
Swing Over Cross Slide
255mm
Width of Bed
250mm
Spindle Bore
65mm
Motor Power
7.5kw
Spindle Taper
Mt6
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
CDC Series Large Spindle Hole Precision Lathe
Over sized spindle bore of 80mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand.
Outward appearance of machine features large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened (HB450 plus).
All gears hardened and ground by Reishauer grinding machine.
Leadscrew and feed-rod interlocked, both with overload protection.
Automatic feed stopper.
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Halogen lamp; Quick change; Tool post; DRP; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system.
SPECIFICATIONS:
| MODEL | CD6240C | CD6250C | CD6260C | |||
| CAPACTIES | Max. swing over bed mm | 400 | 500 | 600 | ||
| Max. swing over cross slide mm | 225 | 325 | 360 | |||
| Max. swing in gap mm | 530 | 630 | 730 | |||
| Center distance | 1000,1500, 2000mm | |||||
| Cross slide travel mm | 330mm | |||||
| SPINDLE | Spindle hole | 80mm | ||||
| Spindle nose | ISO-C8 or ISO-D8 | |||||
| Spindle taper | Metric 85mm | |||||
| Spindle speeds | 24-1600rpm (15 Steps) | |||||
| FEEDS | Metric threads range (Kinds) | 0.5-28mm (66Kinds) | ||||
| Inch threads range (Kinds) | 1-56tpi (66 Kinds) | |||||
| Module threads range (Kinds) | 0.5-3.5mm (33 Kinds) | |||||
| Diametral threads range (Kinds) | 8-56 DP (33 Kinds) | |||||
| Longitudinal feeds range(kinds) | 0.072-4.038mm/reV (0.0027-0.15inch/rev)(66kinds) | |||||
| Cross feeds range (kinds) | 0.036-2.019mm/reV (0.0013-0.075nch/rev)(66kinds) | |||||
| Rapid traveling speed of carriage | 5m/min(16.4ft/min) | |||||
| Leadscrew size:Diameter pitch | 35mm/6mm or 35mm | |||||
| CARRIAGE | Cross slide travel | 300mm | ||||
| Compound rest travel | 130mm | |||||
| Cross-section size of tool shank | 25x25mm | |||||
| TAILSTOCK | Spindle diameter | 65mm | ||||
| Spindle taper | Morse No. 5 | |||||
| Spindle travel | 120mm | |||||
| Main motor | Main drive motor | 4.0kw or 5.5kw | 7.5kw | |||
| Coolant pump motor | 0.125kw | |||||
| Rapid traverse motor | 0.12kw | |||||
| Net weight/Gross weight(kg) | 1000mm | 1640/2290 | 1700/2350 | 1800/2500 | ||
| 1500mm | 1850/2250 | 1910/2610 | 2010/2760 | |||
| 2000mm | 2090/2860 | 2150/2920 | 2250/3070 | |||
| PACKING SIZE (L*W*D) | 1000mm | 2420*1150*1800mm | ||||
| 1500mm | 2920*1150*1800mm | |||||
| 2000mm | 3460*1150*1800mm | |||||
