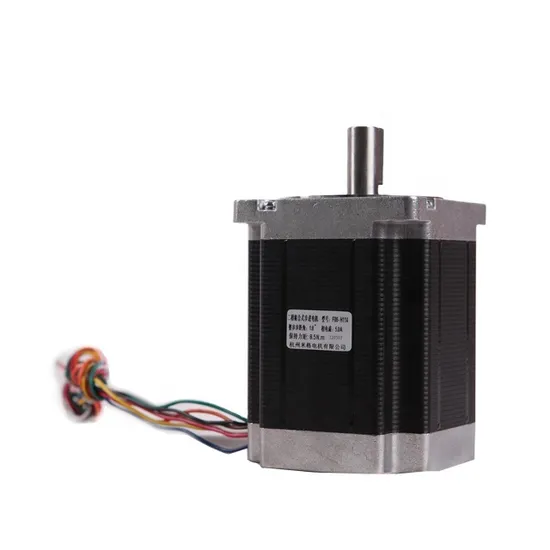

High Torque 86byg 45kg Hybrid Stepping Motor for Precision Control
| US$5.00-95.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
F86-H80
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
4
Operate Mode
Three Phase Double Beat
Type
Hybrid
Certification
ISO9001, CE
Brand
Mige
Usage
Universal
Protect Feature
IP54
Phase
Two Phase
Warranty
3months-1year
Shape
Square
Current / Phase
4.2A
Structure
Synchronous Motor
Power
DC
Transport Package
Packed in Plywood Case or Carton
Specification
86mm
Trademark
mige
Origin
Zhejiang, China
HS Code
85013100
Production Capacity
50000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
26.00cm * 24.00cm * 20.00cm
Package Gross Weight
3.500kg
Product Description
Stepping motor Size 86mm is a brushless, synchronous electric motor that can divide a full rotation into a large number of steps. The motor's position can be controlled precisely, without any feedback mechanism.
Electric Parameters:
| Model | F86-H80 |
| Step Angle(°) | 1.8 |
| Length L(mm) | 80 |
| Holding torque(N.m) | 4.5 |
| Current (A/phase) | 4.2 |
| Resistance(Ω) | 0.8 |
| Inductance (mH) | 3.4 |
| Rotor inertia (g.c) | 1400 |
| Weight (kg) | 2.3 |
| Step accuracy | 5% |
| Temperature | 80 Max |
| Environmental temperature | -20 ~ -+50 |
| Insulation resistance | 100M Ω Min 500 V DC |
| Withstand voltage | 500V AC 1minute |
Please contact with us for more detailed technical information.
We can design according to clients' requirement.
