Hsg Laser High Quality Fiber Laser Cutter Price Sheet Metal Factory Directly Supply Ultra High Power 6000W-30000W Laser Cutting Machines for Metal

Product Description

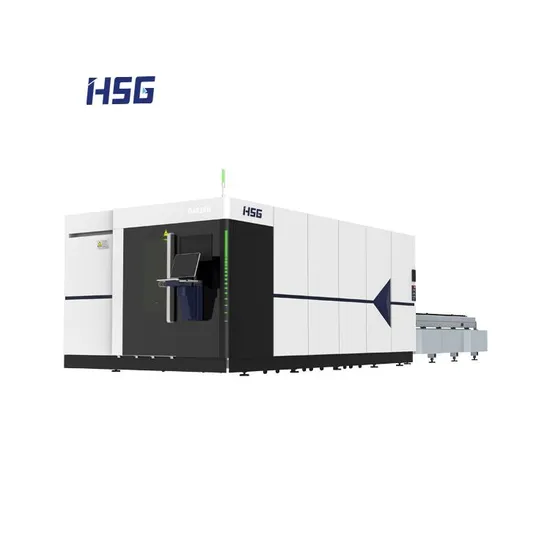

Hsg Laser 15000W / 20000W Ultra High Power Laser Cutting Machine
MODEL FEATURES (Sheet Metal Laser Cutting Machine)
1.Alpha T Bus CNC System
2.Autofocus Cutting Head
3.Extruded Aluminum Beam
4.Dual-motor Driven Exchange Platforms
* High power refers to 12000W and above.
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
The point of GH Pro II
1.P10/P20/P30 Autofocus Laser Cutting Head
It can change its laser spot to proper size and shape according to cutting materials and thickness.
* Active obstacle avoidance, automatic cooling down
* Optical filming, visual display of temperature and pressure
* Anti-pollution design, cut with mirror-like surface
* Remind of regular maintenance, give early warning if abnormal
2.Patented Cornerstone Machine Bed
Firm, steady and high-precision without vibration while cutting at high speed Rapid heat dissipation for much longer service life Covered with military-level manganese anti-burning plate to prevent heat deformation
3.Double Exchange Platforms, Taper Pins Positioning
The double platforms are driven by double motors and 16A wide chains and positioned by taper pins. The entire exchange process is shown on PLC touch screen
Alpha T Bus CNC System
Alpha T can make data transmission via a network cable.
Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST nesting software
* Bus refers to data transmission mode via on-site bus control system.
4.User-friendly Design
* Front-placed Electric Cabinet: The cabinet is free from collision while loading and unloading. Cutting slags are prevented from entering in the cabinet. * Electric Control Console :
It lifts or falls only by pressing a button, which is friendly to all users of different heights and in different postures.
Product Parameters

Feature/Model	G6025H Pro	G8025H Pro	G12025H Pro
Working Area (L*W)	6000mm*2500mm	8000mm*2500mm	12000mm*2500mm
Stroke (X/ Y/ Z Axis)	2550mm/6100mm/270mm	2550mm/8100mm/320mm	2550mm/12200mm/380mm
X/Y Axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y Axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
Moving Speed	140m/min	140m/min	140m/min
Acc. Speed	1.5G	1.5G	1.5G
Laser Power	15000W~20000W	15000W~20000W	15000W~20000W
Overall Dimensions (L*W*H)	15900×4150×2370mm	20100×4150×2370mm	30000×4140×2400mm

Cutting Sample
Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.
Our Service
Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions.
Customer praise
FAQ
High Power 12000W / 20000W Metal Fiber Laser Cutting Machine with Exchange Table
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(78.70%),South Asia(3.66%),Eastern Europe(3.05%),Southeast Asia(2.99%),Western Europe(2.44%),Mid East(2.20%),Eastern Asia(1.83%),South America(1.46%),Oceania(1.19%),North America(0.73%),Africa(0.71%),Southern Europe(0.61%),Northern Europe(0.43%). There are total about 1000+ people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Laser Cutting Machine,Sheet & Tube Laser Cutting Machine,Tube Metal Laser Cutting machine,Laser Welding Machine,Bending machine 4. why should you buy from us not from other suppliers? Relying on our software development advantages and several years'steady development,we have developed laser machines of eight series and more than 60 models and have reached year's production capacity of more than 2000 sets. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian,Korean Hsg Laser 15000W / 20000W Ultra High Power Laser Cutting Machin
