1650*1290*1450 Ruite Wooden Case Packing Cutting Machine EDM Wire Cut with ISO 9001

1650*1290*1450 Ruite Wooden Case Packing Cutting Machine EDM Wire Cut with ISO 9001

US$6,500.00
1-9 packs
US$4,500.00
10+ packs

Basic Info.

Model NO.
DK7745
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Weight (Kg)
1300
Machine Type
Wire EDM
Machine Size(mm)
1650*1290*1450
Dimension(L*W*H)
1650*1290*1450mm
Showroom Location
None
Workbench Size(mm)
860*600
Warranty of Core Components
2 Years
Workbench Stroke(mm)
450*550
Video Outgoing-Inspection
Provided
Maximum Cutting Thickness(mm)
500
Total Machine Power(Kv)
1.5
Marketing Type
New Product 2022
Core Components
PLC, Bearing, Motor, Pressure Vessel, Gear
CNC or Not
CNC
Voltage
380V/220V
Transport Package
Wooden Case Packing
Specification
1650mm*1290mm*1450mm
Trademark
Ruite
Origin
Jiangsu, China
HS Code
8456301090
Production Capacity
100sets/Month

Product Description

Specification

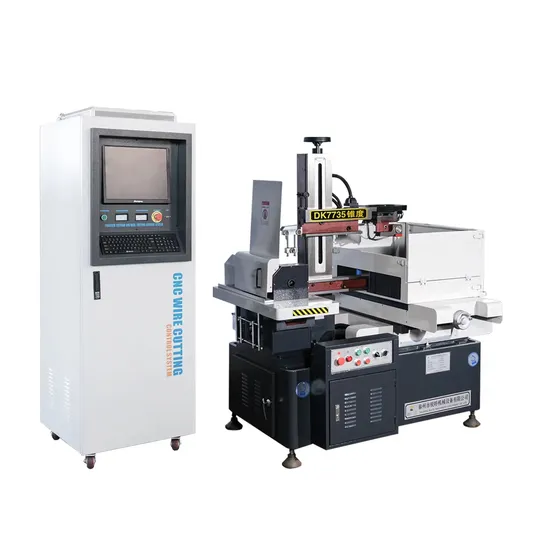

Product Informations Taizhou Ruite Machinery Equipment Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models.
The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
Model
Worktable travel(mm)
Worktable size(mm)
Max. cutting thickness(mm)
Max. load(kg)
Dimensions(mm)
Weight(kg)
DK7720
200*250
490*380
200
100
1200*900*1300
800
DK7725
250*320
520*390
300
200
1450*900*1500
1000
DK7735(32)
350(320)*450(400)
730*490
500
300
1400*1100*1600
1100
DK7745(40)
450(400)*550(500)
810*570
400
500
1600*1200*1600
1400
DK7745F(40F)
450(400)*630
950*600
400/600
600
1600*1580*1600
1600
DK7755(50)
550(500)*650(630)
950*650
700
700
2000*1500*1900
1800
DK7755F(50F)
550(500)*800
1140*650
700
700
2000*1650*1900
2000
DK7763
630*800
1140*750
700
1000
2100*1700*2050
2400
DK7763F
630*1000
1350*750
700
1200
2250*1850*2050
2800
DK7780
800*1000
1350*980
900
2000
2400*1900*2350
4000
DK7780F
800*1200
1600*1050
900
2400
2550*1950*2400
4500
DK77100
1000*1200
1600*1100
1000
2600
2850*2500*2500
5200
DK77100F
1000*1400
1800*1250
1000
2800
2950*2050*2500
5800
DK77120
1200*1400
1800*1350
1000
3000
3050*2750*2500
7500
DK77120F
1200*1600
2000*1500
1000
3500
3100*2850*2500
8400
DK77160
1600*1800
2000*1700
1000
4000
3250*3000*2500
10000

Products Description
The Sample Shows
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Hot Sale Items
Company Profile
Taizhou Ruite Machinery Equipment Co., Ltd, specializing in the research and development, testing, manufacturing, and sales of edm wire cutting machine, edm drilling machine, middle speed edm wire cutting machine, molybdenum wire, machining center, edm die sinking machine, jade wire sawing machines and electrical processing equipment.
Ruite covers an area over 15000, has passed CE certification, BV certification, ISO9001. etc.
Innovative Ruite CNC is committed to providing customers in various industries with overall solutions for wire cutting, including customized production of machine tools, installation and life-long technical services, to achieve a win-win situation between enterprises and users. The company's "Ruite" DK77 series of medium and fast wire cutting machine tools are known for "large taper, large stroke, high efficiency, high precision, new structure, low loss, more energy-saving, and more environmentally friendly".
The products are selling well in Europe and America. We sincerely welcome people from all walks of life to come and visit.
Exhibition
Certifications
CE Certificate
BV Certificate
ISO 9001
Chinese Itegrity Entrepreneur
Value Service And Credit Enterprise
Value Quality And Credit Enterprise
Our Partners
Packaging & Delivery
FAQ
Q1:What information do you need before making quotation? A:Worktable size or table travel you need.Surface roughness and cutting speed requirements. Q2:How to choose the machine I want? A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model; Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish) Q3:What should I do to start a new business in EDM wire cutting machine area? A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine. Q:Why choose you?What is the difference between you and other Chinese supplier? A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price. Q3:I`m worried about after-sales service! A:Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
