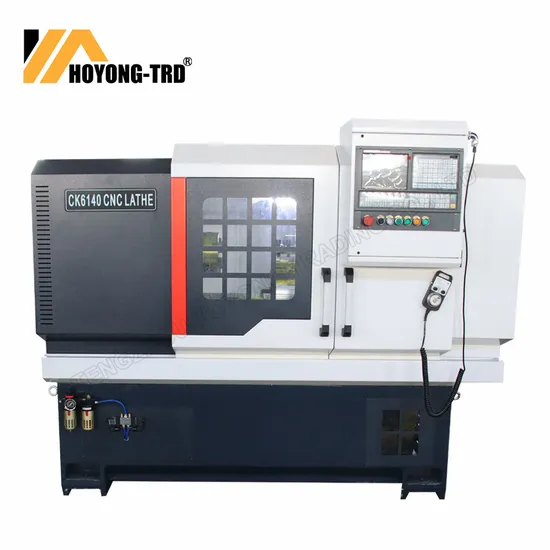

Metal CNC Lathe Machine Price Ck6140 Ck6146 Ck6150 Ck6156
| US$9,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6140 CK6146 CK6150 CK6156
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
360mm,400mm
Swing Over Cross Slide
180mm,250mm
Max. Turning Length
Chuck490mm/Collet580mm
Spindel Bore
48mm
Spindle Speed
150-2000rpm
Spindel Nose
A2-6
Motor Power
5.5kw
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581100
Production Capacity
30
Product Description
CNC LATHES FEATURES:
lay board are suitable for heavy cutting
four station electric turret
inverter stepless speed
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
SPECIFICATION
| MODEL | CK6136 | CK6140 |
| Max.swing over bed | 360mm | 400mm |
| Max.swing over cross slide | 180mm | 250mm |
| Max.turning length | Chuck490mm/ collet580mm | Chuck600mm/ collet700mm |
| Spindle bore | 48mm | 48/83mm |
| Max.diamete rof the bar | 41mm | 41/65mm |
| Spindle speed | 150-2000 | 150-1800 |
| Spindle nose | A2-6 | A2-6/A2-8 |
| Spindle motor power | 5.5kw | 5.5/7.5kw |
| X/Z axis position accuracy | 0.01/0.015mm | 0.01/0.015mm |
| X/Z axis repeatability | 0.012/0.013mm | 0.012/0.013mm |
| X/Z axis motor torque | 4/6N.m | 4/6N.m |
| X/Z axis motor power | 1/1.5kw | 1/1.5kw |
| X/Z axis rapid speed m/min | 8/10 | 8/10 |
| Tool post type | 4/6tool electric turret | 4/6tool electric turret |
| Tool bar section | 20*20mm | 20*20mm |
| Tailstock sleeve dia. | 60mm | 60mm |
| Tailstock sleeve travel | 100mm | 100mm |
| Tailstock taper | MT4 | MT4 |
| N.W. | 1560kg | 1800kg |
| Machine dimension(L*W*H) | 2000*1200*1620mm | 2200*1100*1620mm |
