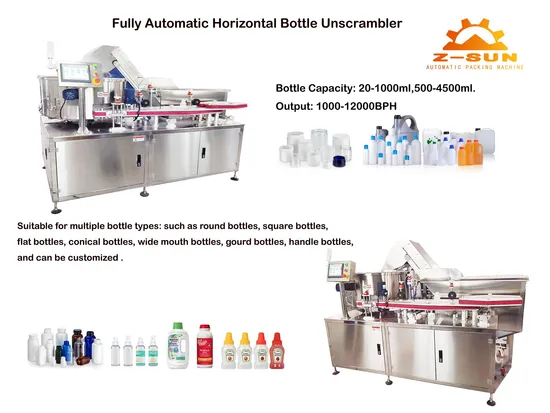

Screen Printing Mechanism Bottle Unscram Connected to Servo Screen Printing Machine for Customized Height Conveyor Belt Bottle Feeder

Product Description

Product Description The equipment adopts the integrated design of elevator and main machine to save space. It is mainly aimed at wide-mouth bottles. Bottles with large capacity differences are sorted. Some mechanisms are adjustable in width and width to adapt to a wide range of bottle types.
High-speed centrifugal disc, intelligent touch operating system:
The equipment adopts high-speed centrifugal method to centrifuge the bottle to the edge of the equipment for high-speed output.
Touch screen control system is convenient for changing equipment parameters.
1. Applicable scope and bottle size:
1.1: Full-automatic bottling machine is a patented product developed by the company. This product is widely applicable to multi-functional full-automatic bottling of products in the food, beverage industry, pharmaceutical industry, condiments, juice, milk and other industries.
2. Equipment advantages:
• Advanced function, simple operation and compact structure. The whole machine adopts mature PLC control system to ensure stable and high-speed operation
• The operating system adopts button control, which is easy to operate, practical and efficient
• The body is made of stainless steel to ensure that the bottle is clean and pollution-free
• Imported low-voltage electrical components with stable performance and low failure rate.
• When the connection is used, it has the function of air conveying bottle blocking alarm, which will automatically start after processing
• Smaller volume and faster speed than traditional bottle sorting machine
• Wide range of use, multiple use of one machine and strong adaptability!
3. Brief description of bottle management machine:
This machine is used for sorting out disordered polyester bottles. The disordered bottles are sent into the bottle storage ring of the bottle management machine through the elevator. By the centrifugal force of the rotary table, the end of the bottles is connected to the centrifugal disk, and the outlet multi-level belt mechanism. By stabilizing the bottle body, the bottles are clamped into the pawl mechanism. The bottle mouth is turned forward, and the bottle bottom cannot be hooked forward. Finally, the bottle mouth moves forward and backward, and then the bottle is upright through the last level belt, The bottle finishing process is completed, and the product is output by the pneumatic bottle conveying system to the next process. The machine body is made of high-quality stainless steel, and other parts are also made of non-toxic and durable series materials. Some imported parts are used for electrical and pneumatic systems. The whole working process is controlled by PLC programming, so the equipment has low failure rate and high reliability.
4. Working process:
Firstly, manually pour the bottle into the elevator bucket;
The bottle will be sent by the elevator to the sorting bin of the bottle sorting machine;
Bottles enter into the bin of the bottle handling machine for sorting, high-speed centrifugal output, multi-level belt output, pawl turnover, and belt clamping to make the bottles upright.

Product Parameters Technical Parameters

Type	LC-GSGZ-05(with or without cover)	LC-GSGZ-06(with or without cover)	Non-standard(OEM)
Host size(mm)	L2000mmXB1600mmXH1300mm	L3000mmXB1600mmXH1300mm	Based on bottle type
Bottle size(mm)	∅40-80,H60-200	∅40-120,H150-350	Based on bottle type
Speed(bpm)	100-300	100-300	Based on bottle type
Power supply	220V,1.5Kw	220V,1.5Kw	Customizable
