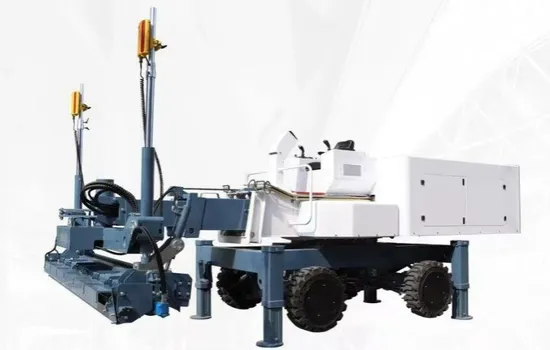

Jb60-30 Automatic Concrete Land Leveling Machine Laser Screed Machine

Product Description

JB60-30 Construction Concrete Machinery Laser Screed Floor Leveling Machine
Product Description

Name	Concrete Laser Screed	Vibration Frequency	60HZ
Type	JB60-30	Laser System	Trimble brand
Engine Type	YANMAR 4TNV94L	Laser Control System	Microcomputer laser scanning
Characteristic	Diesel, 4 Stroke,4 Cylinder	Applicable Scope	Flat Surface ,Slope ,Double Slope
Cooling System	Closed Cooling Liquid	Drive type	Full Hydraulic Drive
Power	35.5KW/ 2800rpm	Soft Landing	Soft Landing System
Fuel	Diesel	Mini Turning Radius	2.6M
Fuel Tank Volume	100L	Cooling Liquid Tank	150L
Engine Oil Volume	2.4-5.3L	Tyre	Solid puncture-proof &antiskid tyre
Leveling system	SLS (self leveling system)	Walking Speed	3KM/H
Screed Width	3. 1M	Working Speed	18 sq.m/Min
Telescopic Boom	6M Long, 360° Rotation	Speed Control	Stepless Speed Change.
Screed Swing Angle	120°	Turning	2 Wheel/4Wheel/ Crab Turning.
Paving Mode	Hydraulic Screw Conveyor Paving	Clean machine	Self configuration of machine
Paving Thickness	100-450MM	Theoretical Flow	12L/min.
Leveling Precision	1.5mm	Rated Pressure	150BAR
Vibrating System	Hydraulic Eccentric Vibrating Beam	Outline Dimension	5350*3650*2100 mm
Configuration	Laser Emitter & Receiver, Tripod.	Net Weight	5500Kgs
Excitation Force	3000N

Product Show

Company Profile
Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 350 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take 3 days after payment arrived.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
