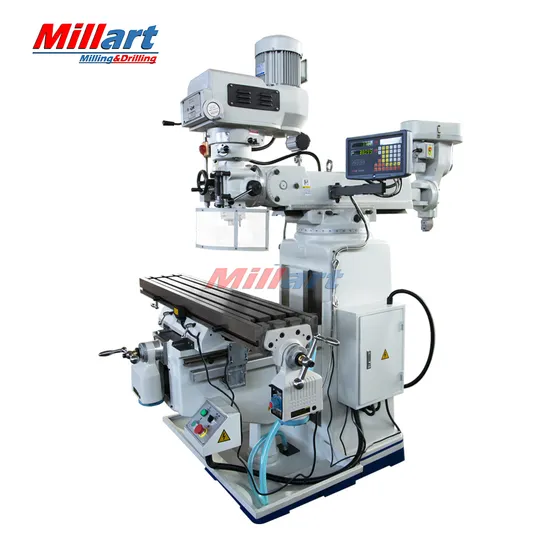

X6325 Turret Milling Machine with Variable Speed Milling Head

X6325 Turret Milling Machine with Variable Speed Milling Head

US$3,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6325
Type
Turret Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1270X254mm
Spindle Hole Taper
R8/ISO30
Longitudinal Travel
870mm
Cross Travel
440mm
Vertical Travel
400mm
Spindle Travel
127mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459590000
Production Capacity
50 PCS/Month

Product Description

X6325 Turret Milling Machine with Variable Speed Milling Head
Feature:
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.Rectangular guide way on Y-axis is featured a good rigidity and stability.
The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan,with variable speed adjustment.
4.Harden the slide way and table surface
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving
7.XYZ axis screws are made in Taiwan
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been designed according to the CE standard
Technical parameter:
Model X6325
Table size 254*1270 (254*1370 optional)
Longitudinal travel(mm) 870
Cross travel(mm) 440
Vertical travel(mm) 400
T-slot No.and size(mm) 3*16
Ram travel(mm) 470
Distance from spindle nose to table(mm) 0-400
Spindle speed Variable:60-4200 rpm
Spindle hole taper R8 / ISO30
ISO40 is optional
Auto quill feed(mm/r) 3 steps 0.04/0.08/0.15
Spindle travel(mm) 127
Spindle motor 2.25kw/3hp
Head swivel 90°
Head tilting 45°
Dimension of package 1516*1550*2080
G.W/set(kgs) 1200/1300

Standard accessories:
Drill chuck
Collet chuck kits
Coolant system
Chip tray
Lubricating
Reduction sleeve
Working lamp
Draw bar
Splash guard
Tools and box

Optional accessories:
X axis power feed motor
Y axis power feed motor
Z axis power feed motor
2 axis Digital readout
3 axis Digital readout
Air draw bar
58 pcs Clamping kits
Spindle protection
Worktable protection
Machine vice
Variable spindle speed
Frequency mill head
Electric slotting head
Rotary table HV-10
Universal dividing head F11-125A
Separately operate penal box
