Tubular Purification Separation Centrifuge Machine Selling in China

Tubular Purification Separation Centrifuge Machine Selling in China

US$4,800.00 1 set (MOQ)

Basic Info.

Model NO.
GQ/GF
Type
Centrifuge
Object
Solid Liquid or Liquid-Liquid or Liquid-Liquid
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Installation
Vertical
Centrifuge Type
Tube Centrifuge
Pressure
Low Pressure
Condition
New
Material
Stainless Steel
Function
Solid Liquid Separation
Transport Package
Wooden Case
Specification
Based on model
Trademark
SHENZHOU
Origin
China
HS Code
8421192000
Production Capacity
500 Sets/Year

Product Description

Main structure of the tubular centrifuge:
The machine is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
Type of the tubular centrifuge:
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.
Working Principle Of tubular centrifuge
The Stainless Tubular Centrifuge of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.
The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Applications Of tubular centrifuge:
It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:
1) Separation of blood (plasma and hemoglobin separation)
2) Vegetable and animal oil separation (vegetable oil degum, de-soap, fish oil polishing
3) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation
4) Waste water handling, waste oil treatment
5) milk separation, coconut oil separation
Technical paramter of the tubular centrifuge:
Item
GQ/GF75 GQ/GF105
GQ/GF125
GQ/GF150



Drum




ID(mm)
75
105
125
147
Height (mm)
450
730
730
730
Sedimentation volume(L)
2.67
6
8
10
Max speed(r/min)
21000
17500
16500
15800
Max separation factor
22500
18500
17300
16800

Inlet nozzle diameter (mm)
3/4/6
4/6/8
6/8/10
8/10/12

Material inlet pressure (Mpa)
≥0.05

Capacity (water capacity)L/H
670
1600
2200
3200

Actually Capacity L/H(according to the solid content)
50-80
100-200
200-300
300-700
Motor model
3 phase two pole motor
Motor power (kw)
1.5
2.2
3
3
Machine dimension (mm)
500*700*1300
600*1000*1600
600*1000*1600
600*1000*1600
Machine weight (kg)
300
460
490
510

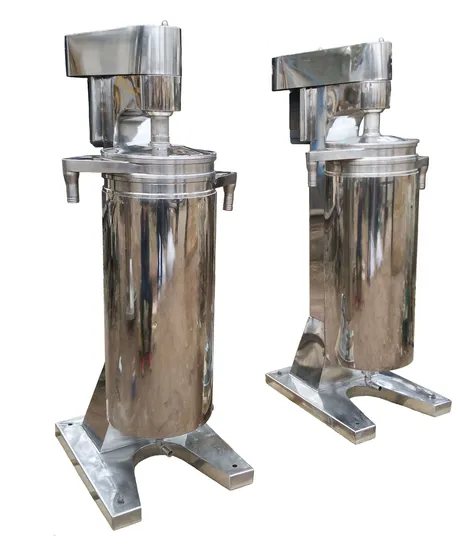

Products pictures:
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
