Shotcrete Machine Mobile Wet Spray Manipulator Cart - Lanhi Lhp40f
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHP40F
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Certification
CE
Condition
New
Total Weight
16t
Engine Power
103kw
Installed Electrical Power
75kw
Operating Mode
Electric Construction + Diesel-Powered Emergency
Control Mode
Wireless Remote Control
Operating Voltage
380V
Operating Range (Width × Height)
26×15m
Chassis Form
Operating Chassi
Driving Mode
One-Way Driving
Driving and Steering Methods
Four-Wheel Drive, Front-Wheel Steering
Minimum Ground Clearance
420mm
Maximum Grade
29%
Turning Radius
10m (Two Wheels)
Maximum Speed
15km/H
Approach Angle/Departure Angle
16°/16°
Transport Package
Nothing
Specification
8340× 2700× 3250mm
Trademark
LANHI
Origin
China
Product Description

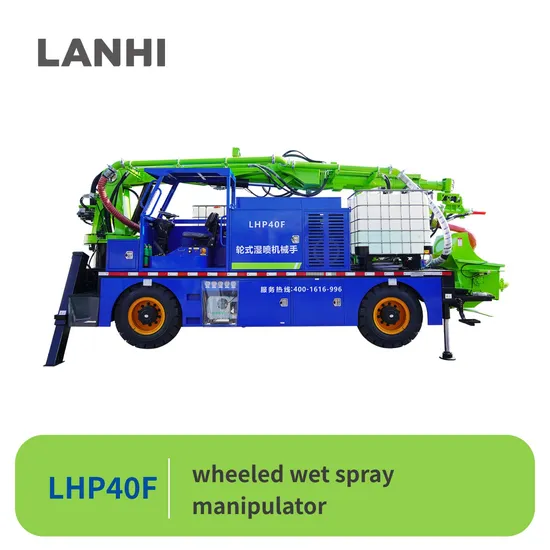

Product DescriptionThe LHP40F The LHP40F wheeled wet spray manipulator represents the pinnacle of modern engineering, blending the best domestic and international wet spray machine technologies into one state-of-the-art device. With an optimized structure, this machine boasts a remarkably low failure rate, high accessory and consumable versatility, and cost-effective operation. Its unparalleled features include high spray capacity, robust pipe blockage resistance, minimal rebound, and consistent, reliable performance, all of which significantly enhance construction efficiency while conserving concrete.
Boasting a maximum spray volume of up to 40m³/h, this equipment delivers exceptional spraying efficiency and features pipes designed to resist blockage.
The diesel-electric dual power system ensures seamless and rapid construction progress, keeping your projects on schedule.
Designed with a small footprint for excellent flexibility, the machine easily navigates in and out of construction sites with ease.
High versatility in accessories and consumables translates to significantly lower operating costs, maximizing your investment.
Equipped with dual quick-setting agent tanks, each with a capacity of 1.5 cubic meters, this machine is perfectly suited for large section construction projects.
Product Parameters
| Transport dimensions (L × W × H) | 8340×2700×3250mm |
| Total weight | 16t |
| Engine power | 103kW |
| Installed electrical power | 75kW |
| Operating mode | Electric construction + diesel-powered emergency |
| Control mode | Wireless remote control |
| Operating voltage | 380V |
| Operating range (width × height) | 26×15m |
| Chassis form | Operating chassis |
| Driving mode | One-way driving |
| Driving and steering methods | Four-wheel drive, front-wheel steering |
| Minimum ground clearance | 420mm |
| Maximum grade | 29% |
| Turning radius | 10m (two wheels) |
| Maximum speed | 15km/h |
| Approach angle/departure angle | 16°/16° |
| Maximum spraying volume | 40m³/h |
| Maximum particle size for spray aggregate | 25mm |
| Hopper capacity | 0.3m³ |
| Capacity of quick-setting agent tank | 1.5m³ |
| Form of quick-setting agent pump | Squeeze pump |
| Discharge volume | / |
| Discharge pressure | / |
Detailed Photos
