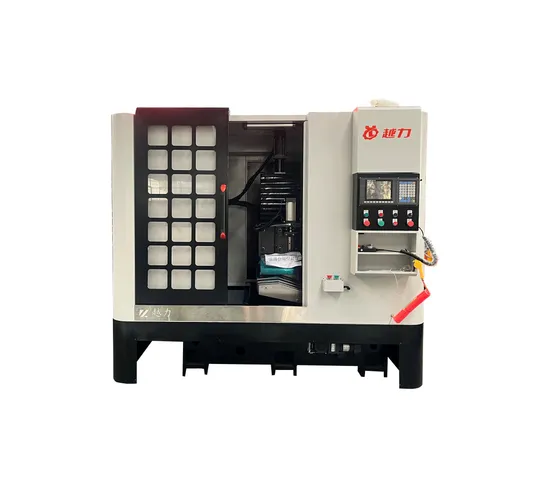

High Speed CNC Drilling Tapping Compound Machine

Product Description

High Speed CNC Drilling Tapping Compound Machine
I.Equipment description and pictures 1.Stainless steel elbow custom equipment, it can process long equipment.
2.One machine replaces the processing efficiency of three machining centers, and the tool change time is saved during the machining process.
3.One-time clamping, complete drilling, tapping, milling process, heavy-duty cutting.
4.Servo tapping
5.Milling plane and inner and outer arc
6.Cyclic drilling and tapping
7.With a cam fourth axis, the workpiece can be rotated at an infinite angle.
II.Technical Parameter

No.	Category	Specification	Remark
1	Qty of main spindle	4 axis
2	Max drilling dia	60mm	Copper
3	Max tapping dia	M50*3
4	Spindle holder type	BT40	Standard
5	Spindle parameter	Spindle revolutions 10-300/min	Speed adjustable
6	Working accuracy	Hole Positioning Accuracy 0.008/Repeatability 0.008
7	Working steam source pressure	5-6 kg/cm²
8	Dimension	2400mm*1700mm*2200mm
9	Weight	3500kg
11	CNC system	Hust
12	Hydraulic system	CML
13	Chipping system	Spiral chip removal
14	Ball screw Linear slide	Taiwan Hiwin

III.Production workshop
IV.Package and Loading V.Certificate
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.
