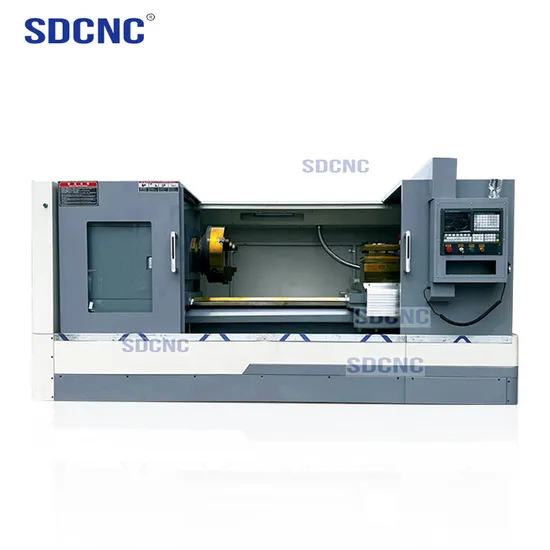

Qk1320 Series CNC Pipe Threading Lathe Machine for Oil Industry
| US$28,690.00-29,650.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Qk1320
Type
Horizontal Lathe
Guide Rail
Inclined Guide Rail
Power Source
Mechanical Drive
Controlling Mode
CNC
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
630mm
Guideway Width
50-220mm
Max Load Capacity
550mm
Main Spindle Motor
11kw
Transport Package
Wood Packaging
Specification
1880*1850*3300
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
188.00cm * 185.00cm * 330.00cm
Package Gross Weight
4500.000kg
Product Description
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery
manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win
the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center
horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling
machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary
lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.
Optional Configuration
1. Fanuc or other brand CNC controller
2. Quick change tool post
3. Hydraulic turret or Power turret
4. Pneumatic chuck
5. Hydraulic tailstock
6. Pneumatic position limiter
7. Tool setting arm
8. Full-shield1.
Product Parameters
| Item | Unit | QK1320 | ||
| Manual | HYD | |||
| Capacity | Swing over bed | mm | 630/800 | |
| Swing over cross slide | mm | 340/520 | ||
| Distance between centers | mm | 1000-6000 | ||
| Guideway width | mm | 50-220 | ||
| Max. load capacity | mm | 550 | ||
| Spindle bore | T | 3 | ||
| Spindle | Spindle bore taper | mm | 200 | |
| Spindle nose type | - | VF.4 steps | HYD 4 steps | |
| Spindle speed range | rpm | 20-600 | ||
| Chuck | mm | Φ500 4-jaw manual | ||
| Turret | Turret/tool post | - | NC turret 4 position | |
| Tool shank size | mm | 32×32 | ||
| Feed | X axis travel | mm | 320/420 | |
| Z axis travel | mm | 1000-6000 | ||
| X axis rapid traverse | mm/min | 4000 | ||
| Z axis rapid traverse | mm/min | 6000 | ||
| Tailstock | Tailstock quill diameter | mm | Φ100 | |
| Tailstock quill taper | - | MT5/MT6 | ||
| Tailstock quill travel | mm | 250 | ||
| Motor | Main spindle motor | kW | 11 | |
| Coolant pump motor | kW | 0.25 | ||
| Dimension | Width×Height | mm | 1880×1850 | |
| Length | mm | 3300-8300 | ||
| Weight | Net weight | T | 4.5 | |
