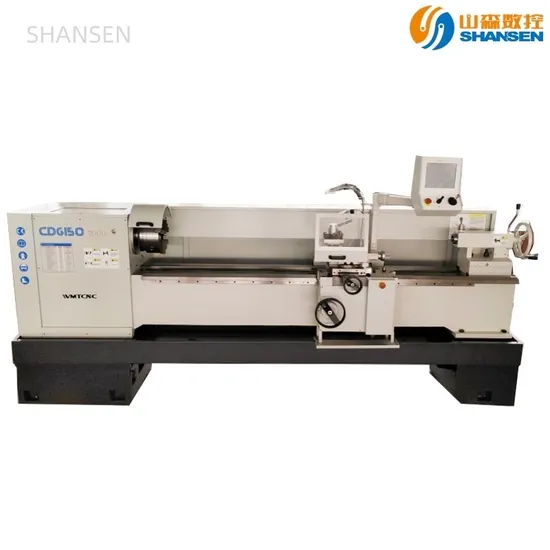

CD6150X3000 Electronic Lathe Suitable for Thread Disk and Shaft Processing High Precision Good Quality

CD6150X3000 Electronic Lathe Suitable for Thread Disk and Shaft Processing High Precision Good Quality

US$13,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
CD6150X1500
Type
Horizontal Lathe
Processing Accessory
Chuck Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Power Source
Servo Motor
Controlling Mode
Lathe Controller
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Model No.
CD6150-3000
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventio
Processing Precision
0.01~0.02(mm)
Numerical Control
CNC/Mnc
Swing Over Bed
500mm
Swing Over Carriage
290mm
Center Height
250mm
Max. Workpiece Length
3000mm
Max. Processing Length
2920mm
3-Jaw Chuck Diameter
250mm
Transport Package
Box
Specification
Product size4430/1145/1740 mm
Trademark
SHANSEN CNC
Origin
Tengzhou, Shandong, China

Product Description


Product model
https://cdfcd11d982fc597.en.made-in-china.com/product-list-1.html
Product model:CD6150-3000
Product Parameters
ltems Unit MOdel CD6150-3000
Swing over bed mm 500
Swing over carriage mm 290
Center height mm 250
Max. workpiece length mm 3000
Max. processing length mm 2920
3-jaw chuck diameter mm 250
Speed ranges rpm 16-1600
Spindle bore mm 82
Spindle taper mm Metric90
Spindle nose C8
Top slide travel mm 150
Cross travel (X axis) mm 260
Longitudinal travel (Zaxis) mm 3000
Number of stations 4
Tool shank size mm 25*25
Quill travel mm 160
Quill diameter mm 75
Quill taper MT5


Product Description
Electronic lathe is our company's electronic lathe series of products in the two specifications, is the company's independent research and development, with independent intellectual property rights of new products, is a substitute for ordinary lathe. Through mechanical and electrical coordination can be extremely convenient to complete the inside and outside cylindrical surface, conical surface, end face and all kinds of thread processing, suitable for machining, tool manufacturing, equipment maintenance and batch production of processing workshop use.

Features of the Electric Lathe
Save 10% cost than ordinary lathe.
It takes 3 years to learn to operate ordinary lathe, but it takes only 3 minutes to learn electric lathe.

Compared with the ordinary lathe, the performance of the electric lathe has been greatly improved, capable of turning threads of any pitch, and realizing cylindrical cycle cutting, thread cycle machining, fixed-length machining and so on.
Pitch feed, processing length, cutting speed, spindle speed, etc. can be set arbitrarily, without exchanging gears.
Detailed Photos


company
Certifications
FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic Lathe, Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,
