China Construction Machinery Edging Power Trowel Gyp-430

Product Description

Power trowels (also called power floats or trowel machines) are highly versatile pieces of construction equipment designed for heavy-duty concrete finishing tasks. A power trowel consists of one or multiple rotating wheels fitted with troweling blades and protected with safety cages, capable of performing the tasks of a hand float, a darby, and a hand trowel in a single device. The power trowel's rotating wheels typically range between 24" and 48" in diameter.
Walk-behind concrete power trowels are manually operated devices. They typically feature a single rotating wheel and are controlled using a hand-operated handle and shaft assembly. The blades and engine are generally smaller than those mounted on ride-on models to limit the device's overall weight, making it more maneuverable.

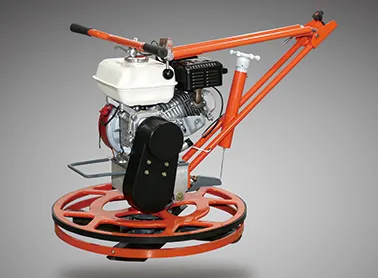

China construction machinery factory of edging power trowel with Honda GX160 engine GYP-430
Technical Specification:

Model	GYP-430-2	GYP-430-3	GYP-430-4
Engine Type	Chinese Petrol Engine	Robin EX17	Honda GX160
Power kw(hp)	4.8(6.5)	4.2(5.7)	4.0(5.5)
Weight kg(lbs)	76(167)	75(165)	75(165)
Blade Speed rpm	70-150
Rotor Dia. Cm(in)	79(30)

We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
All blades can fit most other brands of power trowels.
Specifications:

Standard	Super-blue	Plastic	Thickness mm	Dimension	Correspondent to
GFB061016	/	/	1.6	6"*10.5"	GYP-830 series
GFB061020	SFB061020	/	2.0
GFB061416	/	/	1.6	6"*14"	GYP-836 /436 series
GFB061420	SFB061420	/	2.0
GFB061616	/	/	1.6	6"*16"	GYP-442/846 series
GFB061620	SFB061620	/	2.0
GFB061816	/	/	1.6	6"*18"	GYP-446/848/1046 series
GFB061820	SFB061820	/	2.0

Features:
1.Independent rotating flywheel, allowing operation in tight corners and in confined spaces
2.Foldable handle makes it easier for transportation and storage
3Over-built gearbox assures long service life
4.Heavy-weight design to assure a superior finish
5.Height adjustable handle, assures operator comfort & easy control
6.Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the people
7.Screw control ensures precise blade adjustment
8.Lifting hook for easy transport as standard
Option:
Throttle Control
Lifting hook for easy transport as standard.Foldable handle easy for transportation and storage.
Option:Imported nylon resin blade
Applications :
power trowels are used to create a smooth surface after wet concrete has been vibrated with a poker and leveled with a leveling beam. They are ideal for concrete slabs, industrial warehouse floors, residential housing, parking lots and alleys - or anywhere concrete slabs are poured.
Machinery Operation Processing
Assembling
Package
Performance
