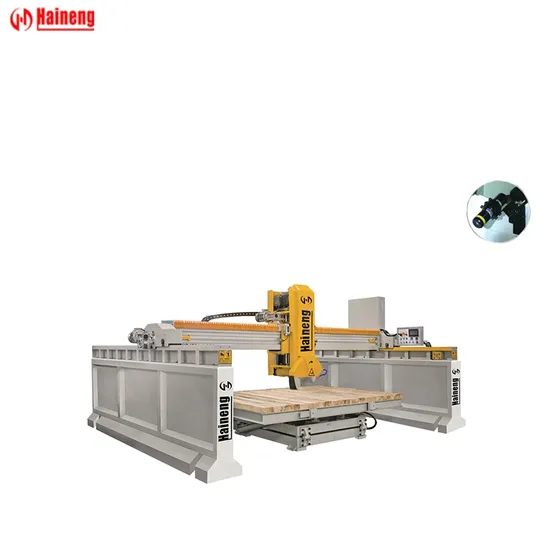

China Exports High Quality Factory Customized Infrared Bridge Saw Granite Marble Stone Cutting Machine

Product Description

Product Description
Infrared bridge stone cutting machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.
Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Product Parameters

Infrared Bridge Stone Cutting Machine
Type	unit	HQ450A	HQ600A	HQ700A	HQ800A
Max. Working dimensions(L×W×H)	mm	3200×2000×100	3200×2000×180	3200×2000×230	3200×2000×280
Blade diameter	mm	Φ350-Φ450	Φ350-Φ600	Φ350-Φ700	Φ500-Φ800
Max.Lifting stroke	mm	230	380	480	580
Worktable size (L×W)	mm	3200×2000
Worktable turnover degree	n°	0°-85°
Worktablerotating degree	n°	0°-90°/360°
Power of main motor	kw	15	18.5	18.5	18.5
Total power	kw	21	24.5	24.5	24.5
Water consumption	m³/h	4	4	4.5	4.5
Dimension (L×W×H)	mm	6000×4800×3000	6000×4800×3200	6000×4800×3400	6000×4800×3600
Total weight	kg	4800	5000	5200	5400

Processing

Packaging & Shipping
Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries
