Sign A2-1325/1530/2030/2040 CNC Router Woodworking Engraving Machine Price

Product Description

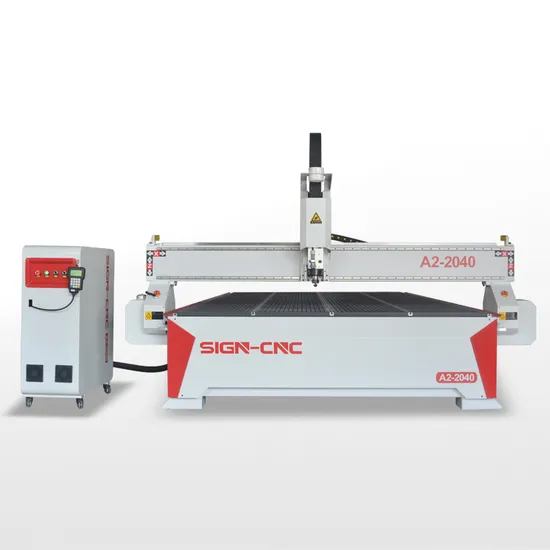

SIGN A2-2040 CNC router Woodworking Engraving Machine Price
Application:
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

Model	A2-2040
X, Y Working size	2000*4000mm
Z feed Height	200mm
Table Surface	T-slot (Option: Vacuum table)
X, Y Structure	Rack and Pinion, Hiwin Linear Square Guide Rail
Z Structure	Hiwin Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	6 KW air cooling spindle
Spindle Speed	0-18000RPM
Drive Motors	Easy servo motor and driver
Working Voltage:	AC220V or 380V /50/60Hz
Command Language	G code
Control System	DSP A11
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Air cooling spindle Rotary system, Vacuum table Panasonic / Yaskawa Servo motors

Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
