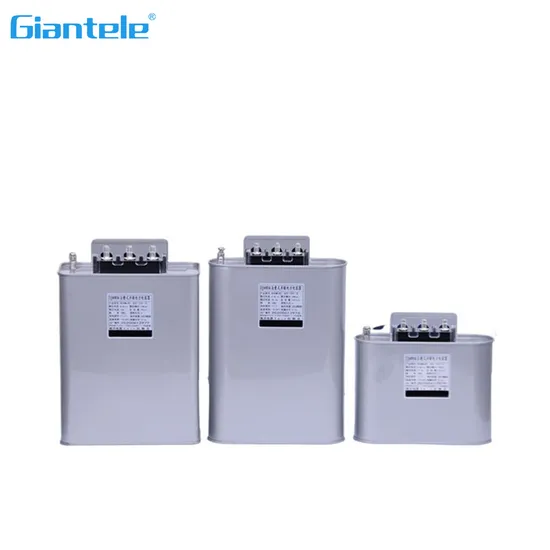

Bsmj Power Capacitors Low Voltage Shunt Super Capacitor of The Self-Healing Type

Product Description

Customized products can consult online customer service!
PRODUCT DETAILS Low Voltage Shunt Power Capacitor of the self-healing type

Description:
Self-healing low voltage shunt power capacitor was used in 50Hz and 6oHz power system it mainly improver power factor, reduce reactive power loss, improve voltage quality. Excavate transformer quantity and so on. It is the best saving power product which company strongly recommend and work. GB/T 12747-2004, IEC60831-1996 TECHNICAL PARAMETER The technical parameters of the form are for reference only.
Customized products can consult online customer service!

Model BSMJ,BCMJ,BZMJ	Rated Volt. (KV)	Rated Capacity (Kvar)	Rated Capacity (μF)	Outgoing terminal	Drawing No.	H (mm)	Rated Current (A)
0.4-4-3	0.4	4	79.6	5.8	105	M6	5.8
0.4-5-3	0.4	5	99.5	7.2	105	M6	7.2
0.4-6-3	0.4	6	119.4	8.7	105	M6	8.7
0.4-7.5-3	0.4	7.5	149.2	10.8	125	M6	10.8
0.4-8-3	0.4	8	159.2	11.6	125	M6	11.6
0.4-10-3	0.4	10	198.9	14.4	180	M6	14.4
0.4-12-3	0.4	12	238.7	17.3	180	M6	17.3
0.4-14-3	0.4	14	278.5	20.2	210	M6	20.2
0.4-15-3	0.4	15	298.4	21.7	210	M6	21.7
0.4-16-3	0.4	16	318.3	23.1	210	M6	23.1
0.4-18-3	0.4	18	358.1	26	245	M6	26
0.4-20-3	0.4	20	397.9	28.9	245	M6	28.9
0.4-22-3	0.4	22	437.7	31.8	210	M8	31.8
0.4-24-3	0.4	24	477.4	34.6	210	M8	34.6
0.4-25-3	0.4	25	497.4	36.1	210	M8	36.1
0.4-28-3	0.4	28	557.3	40.4	260	M8	40.4
0.4-30-3	0.4	30	596.8	43.3	260	M8	43.3
0.4-35-3	0.4	35	696.3	50.5	260	M8	50.5
0.4-40-3	0.4	40	796.2	57.7	330	M8	57.7
0.4-45-3	0.4	45	895.2	65	330	M10	65
0.4-50-3	0.4	50	995.2	72.2	345	M10	72.2
0.4-55-3	0.4	55	1094.2	79.4	220	M10	79.4
0.4-60-3	0.4	60	1194.3	86.6	220	M10	86.6
0.45-1-3	0.45	1	15.7	1.3	105	-	1.3
0.45-2-3	0.45	2	31.4	2.6	105	-	2.6
0.45-3-3	0.45	3	47.2	3.8	105	-	3.8
0.45-4-3	0.45	4	62.9	5.1	105	M5	5.1
0.45-5-3	0.45	5	78.6	6.4	105	M5	6.4
0.45-6-3	0.45	6	94.3	7.7	105	M6	7.7
0.45-7.5-3	0.45	7.5	117.9	9.6	105	M6	9.6
0.45-8-3	0.45	8	125.8	10.3	105	M6	10.3
0.45-10-3	0.45	10	157.2	12.8	125	M6	12.8
0.45-12-3	0.45	12	188.6	15.4	180	M6	15.4
0.45-14-3	0.45	14	220.1	18	210	M6	18
0.45-15-3	0.45	15	235.8	19.2	210	M6	19.2
0.45-16-3	0.45	16	251.5	20.5	210	M6	20.5
0.45-18-3	0.45	18	282.9	23.1	210	M6	23.1
0.45-20-3	0.45	20	314.4	25.7	210	M6	25.7
0.45-22-3	0.45	22	345.8	28.3	245	M6	28.3
0.45-24-3	0.45	24	377.3	30.8	245	M6	30.8
0.45-25-3	0.45	25	393.2	32.1	210	M6	32.1
0.45-28-3	0.45	28	440.3	35.9	210	M8	35.9
0.45-30-3	0.45	30	471.8	38.5	210	M8	38.5
0.45-35-3	0.45	35	550.2	44.9	260	M8	44.9
0.45-40-3	0.45	40	629.1	51.3	260	M8	51.3
0.45-45-3	0.45	45	707.7	57.7	330	M10	57.7
0.45-50-3	0.45	50	786.3	64.2	330	M8	64.2
0.45-55-3	0.45	55	864.5	70.6	330	M10	70.6
0.45-60-3	0.45	60	943.6	77.5	345	M10	77.5
0.525-5-3	0.525	5	57.7	5.5	125	M6	5.5
0.525-10-3	0.525	10	115.5	11	180	M6	11
0.525-15-3	0.525	15	173.2	16.5	210	M6	16.5
0.525-16-3	0.525	16	184.8	17.6	210	M6	17.6
0.525-18-3	0.525	18	207.9	19.8	210	M6	19.8
0.525-20-3	0.525	20	231	22	210	M6	22
0.525-25-3	0.525	25	288.9	27.5	210	M8	27.5
0.525-30-3	0.525	30	346.6	33	260	M8	33
0.525-40-3	0.525	40	462.2	44	330	M8	44
0.525-50-3	0.525	50	577.7	55	345	M10	55
0.525-60-3	0.525	60	693.3	66	220	M10	66
0.69-5-3	0.69	5	33.4	4.2	125	M6	4.2
0.69-10-3	0.69	10	66.9	8.4	180	M6	8.4
0.69-15-3	0.69	15	100.3	12.6	210	M6	12.6
0.69-16-3	0.69	16	107	13.4	210	M6	13.4
0.69-20-3	0.69	20	133.8	16.7	210	M6	16.7
0.69-25-3	0.69	25	167.2	20.9	210	M6	20.9
0.69-30-3	0.69	30	200.7	25.1	260	M8	25.1
0.69-40-3	0.69	40	267.4	33.5	330	M8	33.5
0.69-50-3	0.69	50	334.3	41.9	345	M10	41.9
0.69-60-3	0.69	60	401.4	50.2	220	M10	50.2
1.2-5-3	1.2	5	11	2.4	180	M6	2.4
1.2-10-3	1.2	10	22	4.8	210	M6	4.8
1.2-15-3	1.2	15	33.2	7.2	220	M6	7.2
1.2-20-3	1.2	20	44.2	9.6	260	M6	9.6
1.2-25-3	1.2	25	55.3	12	260	M6	12
