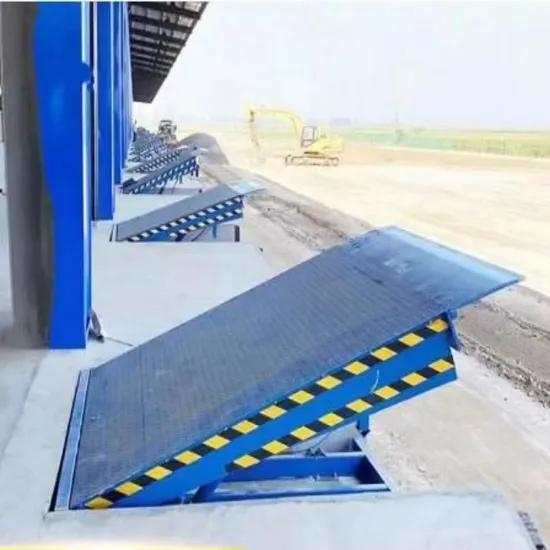

Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
| US$1,500.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Transport Package
Wrapping Film
Specification
2000*2000*600 mm
Trademark
XIFEI
Origin
Made in China
HS Code
84254290
Production Capacity
10000/ Year
Product Description
| MORE PARAMETERS | |
| Main Board | Q235B steel plate with anti-slide pattern,thickness:6 / 8 mm;blasting surface treatment and powder coating |
| Lap Plate | Q235B steel plate with anti-slide pattern,thickness:14 / 16mm;The surface treatment is blasting and powder coating |
| Hinge | Open type, 8*150mm |
| Loading Weight | Dynamic load:6T / 8T / 10T / 12 T / 15T |
| Driving | Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW |
| Control System | Standard 380V English interface |
| Adjust Scope | +400mm/-300mm |
| Adjust Time | Up ≤16S ; Down≤10S |
| Sealing Parts | Brand:NOK A505 Complete set of seals for oil cylinder |
| Main cylinder | Single cylinder / double cylinders |
| Main Board Stiffener | 8 pcs of 14# I-Beam, the height of Beam is 140mm |
| Support Rod | Fold at the bottom of the panel |
| High Pressure Oil Pipe | T3683-2001;60mpa |
| Side Baffles | Automatic retraction to ensure safety |
| Hydraulic Oil | 32# Antiwear hydraulic oil |
| Working Pressure of Hydraulic Oil | 8Mpa ±1Mpa |
| Capacity of Hydraulic Oil Tank | 5-6L |
| Working Temperature | -30ºC~+50ºC |
| Anti-collision Bumper | 300*200*100 mm |
| Base Frame | 10#channel steel welded frame structure |
| Safety Part | Explosion proof valve |
| Working Frequency | ≥200000 times |
Remarks:
1. Shanghai XIFEI Door Industry Co., Ltd is a professional enterprise engaged in industrial door design, manufacturing,
sales & installation and after-sales service.
2. The company introduces advanced equipment and technology, design a variety of products according to customer
needs, aims to support customers with high-quality products and professional solutions.
3. The company mainly produce steel door, wood door, fire door, high speed door, sectional door, roller shutter door,
hangar door, logistic docking system and so on.
4. Honors and Certifications:
a. China AAA Enterprise
b. ISO9001: 2000 Management Certification
c. CE Certification
