Gains Wound Fiberglass Tanks Fabricators China Filament Winding Vertical Tank

Product Description

Gains Wound Fiberglass Tanks Fabricators China Filament Winding Vertical Tank
Product Description FRP Winding Storage Tank Is A Kind Of FRP Product, Which Is A New Type Of Composite Material Mainly Made Of Glass Fiber As A Reinforcing Agent And Resin As A Binder Through A Microcomputer-Controlled Machine Winding. FRP Storage Tanks Are Corrosion-Resistant, High-Strength, Light In Weight, And Long In Life. Because Of Their Flexible Design And Strong Craftsmanship, They Can Be Flexibly Designed And Used In Different Industries Such As Chemical Industry, Environmental Protection, Food, Pharmaceuticals, Etc. In The Industry, It Is Gradually Replacing Carbon Steel And Stainless Steel In Most Market Areas.
Large FRP Storage Tanks And FRP Containers Have The Advantages Of Light Weight, High Strength, Corrosion Resistance, Large Volume, Small Footprint, No Need For Transportation, Easy Installation, Low Maintenance Costs, And Users Can Supervise Production, Etc.
Craft
FRP Large Tank Winding Molding Process Is To Wind The Continuous Fiber (Or Cloth, Tape, Prepreg Yarn) Soaked In Resin Glue On The Mandrel According To Certain Rules, And Then Solidify And Demould To Obtain The Finished Product. The Sewage Treatment Tanks Used In Oil Fields Are Made Using This Process.
According To The Different Chemical And Physical States Of The Resin Matrix During Winding, The Production Of Fiber Winding Can Be Divided Into Three Types: Dry Method, Wet Method And Semi-Dry Method.

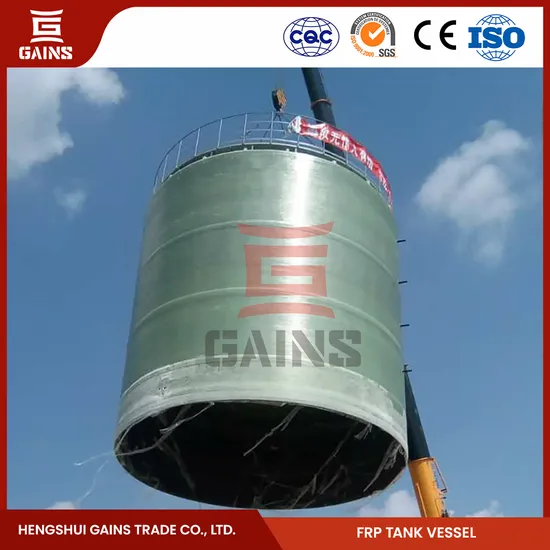

Based On The Site Condition, Vertical Winding, And Horizontal Winding Can Be Chosen.
Large FRP Tanks Manufactured On Site Are Suitable To Store A Series Of Chemical Liquids, Such As Hydrochloric Acid, Sulfuric Acid, Phosphoric Acid, Nitric Acid, Organic Acid, Fluosilicic Acid, Brine, Sewage, Seawater, Potable Water, Etc. FRP Wound Storage Tank Characteristics
1. Chemical Corrosion Resistance And Long Service Life: FRP Has Special Corrosion Resistance And Can Withstand Various Acids, Alkalis, Salts, And Organic Solvents.
2. Large Design Flexibility And Excellent Structural Performance Of The Tank Wall:
3. Fiber-Wound FRP Can Change The Resin System Or Reinforcing Material To Improve The Physical And Chemical Properties Of FRP Storage Tanks And Non-Standard Devices To Meet The Needs Of Different Media And Working Conditions.
4. Adjust The Bearing Capacity Of The Tank Through The Structure And Design Of The Thickness Of The Structural Layer, Winding Angle And Wall Thickness. The FRP Tank Made By This Process Has The Advantages Of Flexible Design, Light Structure, Strong Corrosion Resistance, Simple Construction Process, Anti-Aging, Flame-Retardant, Etc.

Products Advantages:
1.No Need For Transportation, Easy Installation, And Low Maintenance Fees.
2. FRP Tanks' Materials Have Improved Interlaminar Shear Strengths, Bend Strengths, Creep Resistance, Wind-Resistant Ability, And Shaking-Resistant Capability.
3, Large-Scale On-Site Vertical Design
4, Heat-Cured Resin As Its Main Component And Glass Fiber As Its Reinforced Material,
5, Adopted Double Filament Mouth To Screw-Wind And Circular-Wind With Excellent Physical Property And Corrosion Resistance,
6, Expedient Installation And Without The Need For Maintenance,
7, Flexible Design And Rational Wall Structure. Product Parameters

Product Name	FRP Winding Storage Tank
Keywords	On-site Winding Large FRP Tanks
Density	1.65-1.9g/cm3 or Customized
Compressive Strength	240Mpa
Heat conductivity	0.28-3.2m/m.k
Impact Strength	1.5X105t/m2
Axial Tensile Strength	=25Mpa
Shape	Round Tank
Raw Material	FRP/GRP
Model	Large Vertical
Capacity	Customizable
Color	Green or Customized
Surface Treatment	Smooth Surface
Eco-Friendly	Yes
Certificate	Iso9001

Main Physical Performance of On-Site Winding Vertical FRP Storage Tank

Density	1.65-1.9G/Cm3 Or Customized
Circumferential Tensile strength	>=300Mpa
Circumferential Tensile Elastic modulus	>=2.9X104Mpa
Axial Tensile Strength	>=25Mpa
Axial Tensile Elastic Modulus	>=2.5X103Mpa
Barcol Hardness	>=36
Inside Surface Roughnesscoefficient	0.016
Compressive Strength	240Mpa
Impact Strength	1.5X105T/M2
Thermal Expansion Coefficient	1.07X10-5M/M°C
Heat Conductivity	0.283.2M/M.K
Food Storage Sites ResidualPhenylessig Content	< 0.2%
Frictional resistancecoefficient	0.016

Detailed Photos
Hengshui Gains Trade Co., Ltd. is Located In Jizhou City, Hebei Province-Biggest Production Base Of FRP Products And Radiators In China, Combines Advantages Of Local Different Industries, Hengshui Gains Trade Co., Ltd. Consists Of Several Large-Scale Manufacturers Of, Depends On Customers' Different Requirements, We Recommend And Choose A Suitable Manufacturer To Satisfy And Fulfill, We Can Provide Design, Supply, Shipping, Installation, Commissioning, Etc One-Station Service Or Technical Consultation Service. From Our Company To Tianjin Seaport Is 300Km, To The Nearest Airport, Is 180Km, Nearest High-Speed Train Station Is 90Km.
Our Core Business And Services Are:
1, FRP/GRP Products: FRP Vessel & Tower, FRP (Motor) Pipe, FRP Cooling Tower, FRP Grating, FRP Electrolytic Cells, FRP Septic Tank
2, The Whole Set Of FRP Products Production Line And Technology: Computer Control Filament Winding Machine, FRP Protrusion Production Line, Molded FRP Products Production Line
3, Radiator
4, Electrical Cable
5, Sluice Gate Etc Facilities For Water Conservancy
6, Rubber Bridge Bracing
7, The Whole Set Of Chemical-Making Equipment & Technology: Mannheim Process Potassium Sulfate-Making Equipment & Technology, Titanium Dioxide Production Equipment & Technology
FAQ Q1: Why Choose Gains Trade?
A1: 15+ Years Experience In FRP Industries, Have Rich Experience That Provides Different FRP Products To Fluor, Technip, Dossan, Arkema, Veolia, Wison, Dupont, Etc.
Q2: Can You Choose The Correct Raw Material For Our FRP Product?
A2: Absolutely, Pls Provide Medium & Concentration, Temperature, Pressure, Etc Technical Parameters, PP/FRP, PVC/FRP, PVDF/FRP, Etc Pipe/Tank/Tower Also Are In Our Supply Scope.
Q3: What's Your Delivery Time?
A3: We Have Several Manufacturing Plants, And Each Plant Has A Design Department And Production Facilities, We Can Finish Your FRP Products In The Shortest Time.
Q4: Which Port Is Nearest To Your Plant?
A4:From From Our Plant To Tianjin Seaport Is 300 km, To Shijiazhuang/Jinan Airport Is 150 km, And To Hengshui, High-Speed Train Station Is 30 km.
Q5:How Can We Guarantee The Quality?
A5:Always A Pre-Production Sample Before Mass Production;
Always Final Inspection Before Shipment;
Q6:Are You A Manufacturer Or A Trading Company?
A6:We Are A Manufacturer, Providing OEM & ODM Services.
