Henan Mine High Tech The Lifting Heigh 12m Diesel Engine Lifting Platform
| US$4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Lifting platform
Application
Indoor or Outdoor
Lift Mechanism
Electro-Hydraulic
Carrying Capacity
Light Level
Moves
Moving
Driven Type
Diesel
Running Mode
Moving
Certification
CE, ISO 9001
Rate Loading
500kg
Start
Electric
Model
Scissor Lift
Driven
Diesel
Lifting Heigh
12m
Control
Distant Control
Transport Package
Packed in Standard Export Wooden Cases
Specification
China National standard
Trademark
KUANGYUAN
Origin
Henan, China
Production Capacity
500, 0000 Sets/Year
Packaging & Delivery
Package Size
50.00cm * 70.00cm * 300.00cm
Package Gross Weight
1000.000kg
Product Description

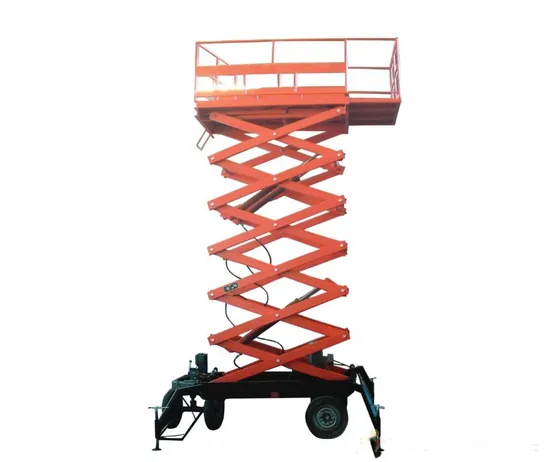

Henan Mine High Tech The Lifting Heigh 12m Diesel Engine Lifting Platform Product DescriptionA diesel scissor lift is a type of lifting equipment that uses a diesel engine as its power source. It usually consists of a platform and a folding scissor structure that provides vertical ascent and descent. This type of lift is mainly used to provide a safe platform for workers to work at height.
The main difference between a diesel scissor lift and other types of lifts. For example, an electric scissor lift is the power source. Diesel scissor lifts use a diesel engine to provide power instead of relying on batteries for power. This makes them widely used in construction sites, warehouses, industrial facilities, stage building, maintenance and installation.
Product configuration
| No. | Name | Material |
| 1 | table | 3mm plate bending |
| 2 | fork support | 160*100*3.75mm Q345 |
| 3 | base frame | 160*80*5.75mm Q345 |
| 4 | rails | 5mm plate bending rail, using nylon slider to do the guide wheel, large contact surface, smooth lifting, small shaking. |
| 5 | oil cylinder | HSG90/60 4; The seal ring adopts imported brand, durable and does not leak. |
| 6 | hydraulic tubing | 2-10-43mpa double steel mesh high pressure tubing |
| 7 | Pump station | Anshan Lisheng production lifting platform special hydraulic pump station. Equipped with emergency descent valve, the platform power can be manually controlled descent; Built-in overflow valve, can prevent the upward movement of the system pressure is too high, play overload protection function |
| 8 | Power and voltage | 3.0KW / 380V |
| 9 | tires | 700-9 pneumatic tires 4 sets |
| 10 | legs | 160*80*3.75mm Q235 |
| 11 | distribution box | delixi brand |
| 12 | control form upper and lower control. | The control part is equipped with emergency safety stop to maximize the protection of property and personal safety.Use 36V safety control voltage for each operating part |
| 13 | travel switch | Shanghai ASEAN brand |
| 14 | pin | 45# round steel to make, cook black processing. Add sF-2 oil-free self-lubricating bearings between pins of each shaft. |
| 15 | Hydraulic oil | 46# Great Wall anti-wear hydraulic oil |
| 16 | lifting speed | 4-6 m/min, adjustable descending speed |
| 17 | derusting treatment | shot blasting,sand blasting derusting treatment; Removing the rust and spatter on the surface of the steel structure member can make the surface of the steel member uneven to a certain extent and increase the adhesion of the powder |
| 18 | Spraying treatment | using electrostatic powder spraying;The coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, durable and does not fade. |
