Semi Automatic 5L plastic bottle blower machine / stretch pet blow molding Machine

Product Description

Product Description
Semi Automatic 5L plastic bottle blower machine / stretch pet blow molding Machine
Product Description
Specifications:
GD-C1 Semi-automatic water bottle blowing machine
CE approval
Speed: 300pcs/h for 5000ml pet bottle
Volume:2500-5000mL
Brief introduction of water bottle blow molding machine:
1.GD-C1 Semi automatic blow moulding machine,is CE standard
2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles
3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second
4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable
5.Independent Temperature Control for different heating lamp to get ideal preform heating results
6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state
7.The bottle scrap rate less than 0.2%
8.Operated only by one person without special training
9.Simple installation & startup adjustment

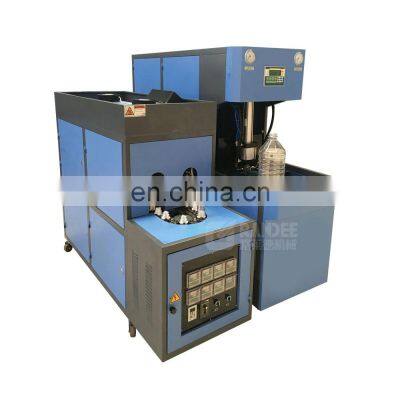

Semiautomatic One cavity or two cavity 5 L blowing machine
Two cavity 5L bottle blowing machine with 600BPH capacity
Bottle Preform Preheating datas setup interface
Heater
One cavity mold
Main technical parameter:

Type	Item	Unit	GD-C1 semi automatic blow molding machine
Container	Product material	/	PET
	Volume	L	0.5-5L(1 cavity) 6L-10L(1 cavity)
	Theoretic output	BPH	300BPH for 5L pet bottle
	Preform length	mm	15-300
	Preform inner diameter	mm	15-100
	Max mould plate dimension	mm	450*550
	Max mould thickness	mm	450
Molding	Clamping force	KN	120
	Mould opening stroke	mm	350
	Blowing air pressure	Mpa	<=3
	Working pressure	Mpa	<=1
Machine size and weight	Main machine weight	T	0.7
	Main machine dimension	cm	175*75*170
	Heater dimension	cm	187*63*145
	Heater weight	T	0.28
	Power	kw	14
