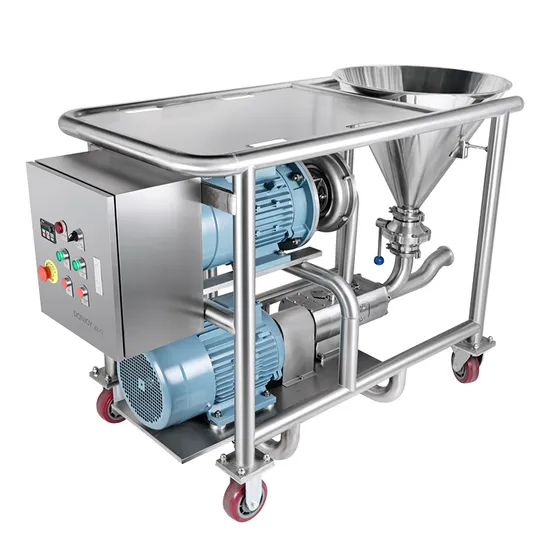

Mixing Pump with Homogeneous Lobe Pump with Control Box
| US$1,569.00-15,699.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PMTU
Application Area
Food
Certification
3A, FDA
Condition
New
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Warranty
12 Months
Working
Shear Mixer
Power
9.5kw-37kw
Max. Flow
40t/H
Gasket
EPDM (FDA 177.2600)
Surface Finish
Ra0.8/0.6/0.4 Micrometer
Connection
Clamped, Threaded, Flanged etc.
Frequency
50Hz, 60Hz
Material
Stainless Steel 304/316L
Max. Temperature
130 Degree Centigrade
Mechanical Seal
Single or Double
Mixer Type
Homogenizer
Operating Type
Continuous Operating
Transport Package
Plywood Case
Specification
PMZX-13~24
Trademark
DONJOY & OEM
Origin
Wenzhou, Zhejiang, China
HS Code
8413709990
Production Capacity
200sets/Month
Product Description
Mixing Pump With Homogeneous Lobe Pump With Control BoxPMTU series mixing pump is used for mixing material and liquid with multi-function such as:
mixing, shearing, emulsifying, homogenizing, dispersing, refining, crushing and material improvement.
Compared with traditional production process, such pump is more simple, convenient and economic,
which improves production efficiency and the quality of treated media.
Mainly used in the industries of: food, beverage, dairy products, additives, personal care, biopharma, thickeners etc.
SPECIFICATION
| Item: | Homogeneous Mixer |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Gasket: | EPDM (Standard, FDA approval), FPM |
| Max. Flow: | 40T/H |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Surface finish: | Ra ≤ 0.8 μm, Ra ≤ 0.6 μm, Ra ≤ 0.4 μm |
| Mechanical seal: | Single or double mechanical seal |
| Power: | 11KW~37KW |
| Motor: | ABB/domestic |
| Frequency: | 50HZ, 60HZ |
| Structure: | With CIP pump & Homogeneous pump |
| Connection: | Clamped, Threaded, Flanged |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operation: | Electic (by motor) |
| Certificate: | 3-A-02-11(NO. 1579); MD/06/42-EC (NO. 70521616101-00); FDA 177.2600; USP CLASS II; EG/VO1935/2004; |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic etc |
