Hanbs Single Spindle Swiss Type Automatic CNC Lathe-HS-320 Located in Dongguan

Product Description

Hanbs CNC Single Swiss Type Automatic Lathe-HS-320 located in Dongguan

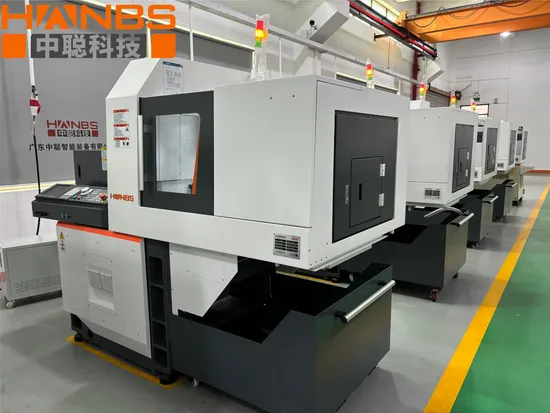

Some pictures about HANBS
Some pictures about delivery
Foreign customers visit the company
Exhibition photos:
Cast iron display
Some photos about optical machine display:
Technical parameter:

	Project
Processing references	Maximum machining	Φ20mm
	Maximum machining length	190mm
	Maximum axial bore diameter	Φ10mm
	Maximum axial work wire size	M8
	Maximum spindle speed	10000rpm
	Radial maximum bore diameter	Φ7mm
	Radial maximum bore tapping size	M6
	Radial power head maximum rotation speed	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum workpiece removal length	100mm
Tool dimension	Number of knives installed	6
	Tool (turning tool)	12X12
	sleeve	Φ25.0 X 4
Clip head guide sleeve	Spindle spring collet	TSUGAMI B0205CCR
	Power head collet	ER11,ER16
	Guide bushing	TSUGAMI BS-20#-B
Feeding speed	Z1/Y-axis feed velocity	30m/min
	X1	20m/min
Electric motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	Cooling of spindle	0.075KW
	Lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2.6T
	Overall dimensions	2250X1200X1850mm

F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.Welcome to visit.
Q2. How can I place order and get more details about the machine ?
A: You can contact us by email or on line and tell me which details you want to know I will send you the processing vedio and photos.

Q3. About the price can you give the favourable or best price?
A. We have different series machine,and we will recomand you the suitable machine according to your products.Our aims is to become long-term cooperation and friends so we will give you the favourable price for you.
Q4.Can you provide some certificate?
A. According to different country,we can provide different certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is 46 mm.Mini processing daimeter is 3mm.And you can send me the drawings about your products our engineer will do the assessment.
Q6.How will the machine be transported?
A.We transport machine by sea and the port is Shenzhen.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production and help customer to solve the problems.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
