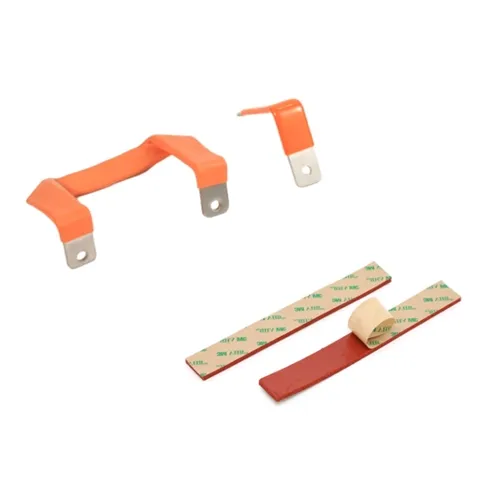

200 Degree Flexible Viton FKM Single Wall Heat Shrink Tube for Bus Bar

Product Description

Product Description
SFKM Fluoroelastomer Heat Shrinkable Tube ˙Materials: Fluoroelastomer
˙Operating temperature range:-55ºC~200ºC
˙Contraction temperature:: above 175ºC
˙Contraction ratio:: 2:1
˙Features: High-temperature resistance, flame retarding, flexibility, oil resistance, acid and alkali resistance
˙Applications:Suitable for protection of electronic devices in an environment with high temperature and oil and insulation
protection of resistors, capacitors, and thermocouples
Color: Black,Red,Yellow,Blue ul Approved

Property	Requirement	Test method	Typical data
Longitudinal shrinkage	≤10%	ASTM D 2671	≤5%
Tensile strength	≥8.2MPa	ASTM D 2671	≥12 MPa
Elongation at break	≥250%	ASTM D 2671	≥400%
Elongation after ageing (250ºC,168hrs)	≥200%	ASTM D 2671	≥300%
Heat shock(300ºC,4hrs)	No crack	ASTM D 2671	No crack
Low-temperature flexibility(-55ºC,4hrs)	No crack	ASTM D 2671	No crack
Dielectric voltage withstand	2500V,60sec, no breakdown	ASTM D 2671	pass
Dielectric strength	7.9 KV/mm min.	ASTM D 2671	≥12 KV/mm
Volume resistivity	109Ω·cm min.	ASTM D 876	≥109Ω·cm
Corrosion	No corrosion	ASTM D 2671	pass
Flammability	Self-extinguishing within 15s	ASTM D 2671	pass
Fluids resistance (23ºC ,24hrs)
Tensile strength	8.2MPa min.	ASTM D 2671	≥12 MPa
Elongation at break	250% min.	ASTM D 2671	≥400%

Normal wall Type
Size		(mm) As Supplied min.) Inside diameter	(mm) After recovered
inch	mm		(max.)Inside diameter	Wall thickness
3/32	Ф2.4	2.4	1.2	0.51±0.08
1/8	Ф3.2	3.2	1.6	0.76±0.13
3/16	Ф4.8	4.8	2.4	0.89±0.18
1/4	Ф6.4	6.4	3.2	0.89±0.18
3/8	Ф9.5	9.5	4.8	0.89±0.18
1/2	Ф12.7	12.7	6.4	0.89±0.18
3/4	Ф19.1	19.1	9.5	1.07±0.21
1	Ф25.4	25.4	12.7	1.25±0.30
1 1/2	Ф38.1	38.1	19.1	1.40±0.38
2	Ф50.8	50.8	25.4	1.65±0.43

Normal wall Type
Size		(mm) As Supplied min.) Inside diameter	(mm) After recovered
inch	mm		(max.)Inside diameter	Wall thickness
3/32	Ф2.4	2.4	1.2	0.51±0.08
1/8	Ф3.2	3.2	1.6	0.76±0.13
3/16	Ф4.8	4.8	2.4	0.89±0.18
1/4	Ф6.4	6.4	3.2	0.89±0.18
3/8	Ф9.5	9.5	4.8	0.89±0.18
1/2	Ф12.7	12.7	6.4	0.89±0.18
3/4	Ф19.1	19.1	9.5	1.07±0.21
1	Ф25.4	25.4	12.7	1.25±0.30
1 1/2	Ф38.1	38.1	19.1	1.40±0.38
2	Ф50.8	50.8	25.4	1.65±0.43

thin wall Type
size		(mm)As supplied	(mm) After recovered
inch	mm	(min.) Inside diameter	(max.)Inside diameter	Wall thickness
3/32	Ф2.4	2.4	1.2	0.30±0.08
1/8	Ф3.2	3.2	1.6	0.33±0.08
3/16	Ф4.8	4.8	2.4	0.36±0.10
1/4	Ф6.4	6.4	3.2	0.41±0.10
3/8	Ф9.5	9.5	4.8	0.48±0.10
1/2	Ф12.7	12.7	6.4	0.48±0.10
3/4	Ф19.1	19.1	9.5	0.69±0.10
1	Ф25.4	25.4	12.7	0.79±0.10
1 1/2	Ф38.1	38.1	19.1	0.94±0.10
2	Ф50.8	50.8	25.4	1.02±0.10
